SP1-064-028B-015-064F-C - Datasheet
MBA
Category Information

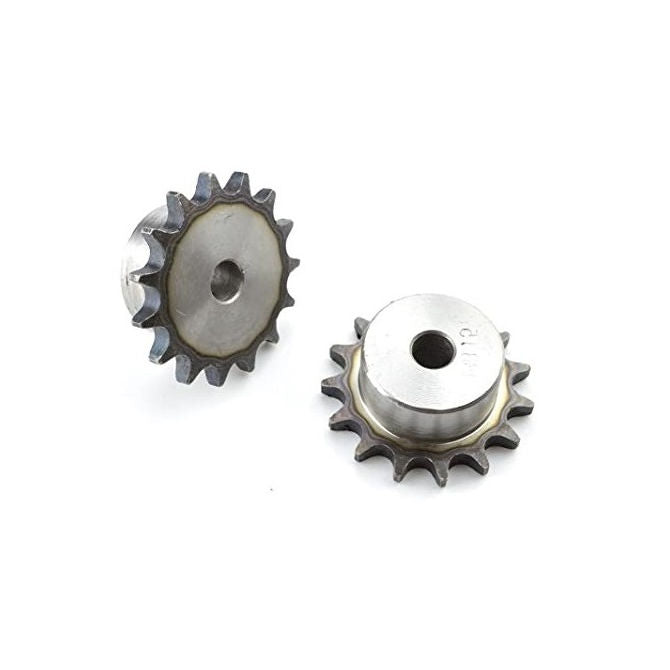

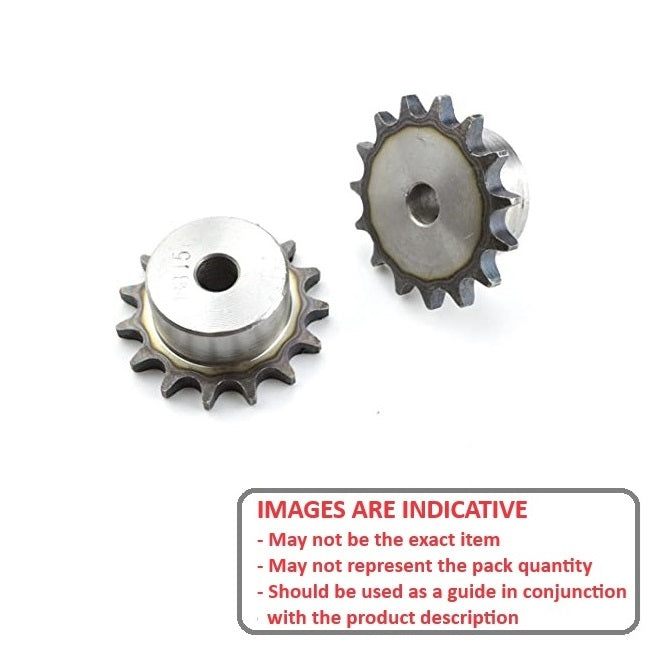

Sprockets - Roller Chain - Simplex - 25-1A - With Boss - Finished BoreFinished Bore With Boss 25-1A Simplex Roller Chain Sprockets. 25-1 ASA 1/4 Inch. With finished bore.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Match with 6.35mm simplex chain
- American Standard 25-1 - 1/4 inch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 15
- PCD
30.31
mm
(Equiv. 1.193 in.) - Hub Diameter (D1)
22.23
mm
(Equiv. 0.875 in.) - Overall Width (E) 12.70 mm
- Standard Number 25-1A
- Type / Rows Type 3s
- Finished Bore (d) 6.350 mm
- Locking Method 2 Set Screws at 90 Deg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 25BF15X1-4
- Gates 25BS15X1-4
- 2737T108
- 25BS15X14
- 25BF15X14
