CS-1524-0318-25-S2 - Datasheet
MBA
Category Information

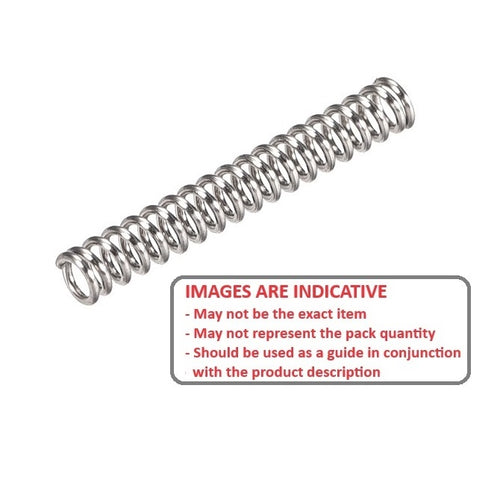

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
15.24
mm
+/- 0.381
(Equiv. 0.6 in.) - Free Length (L0)
31.8
mm
+/- 1.27
(Equiv. 1.252 in.) - Wire Diameter (d)
2.49
mm
+/- 0.023
(Equiv. 0.098 in.) - Load at L1 829 N
- Rate (P/f) 29.7 N/mm
- Solid Height (Sh) 20.27 mm
- Approx. ID 10.3 mm
- Max Rod Dia. (A) 9.50 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Raymond C0600-098-1250S
- C06000981250S
