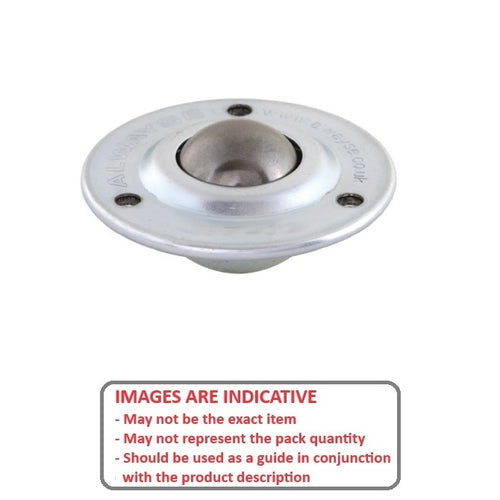

BTU0012-010-F-C - Datasheet
MBA
Category Information
Ball Transfer Units - Flange Mount - Standard - Steel - SlimSlim Steel Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 15 kg

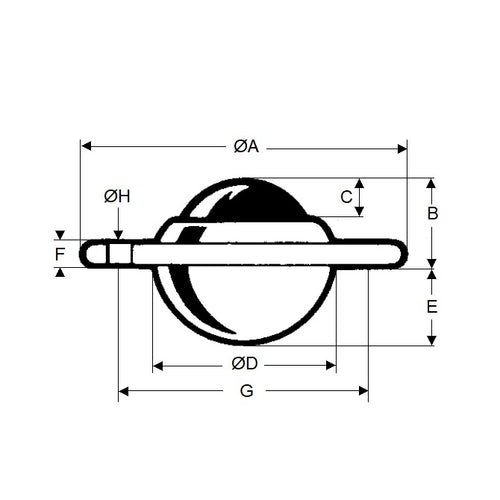

- Ball Height from Flange (B)
10.2
mm
(Equiv. 0.402 in.) - Body Diameter (D)
22.2
mm
+/- 0.2
(Equiv. 0.874 in.) - Overall Height (L) 18.5 mm
- Ball Diameter 15.8 mm
- Body Height (E) 8.3 mm
- Flange Diameter (A) 41.3 mm
- Flange Thickness (F) 3.2 mm
- Fixing Hole Size (H) 3.2 (2 holes only) mm
- Fixing Hole Distance (G) 33 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF3016
- SKF-3016
