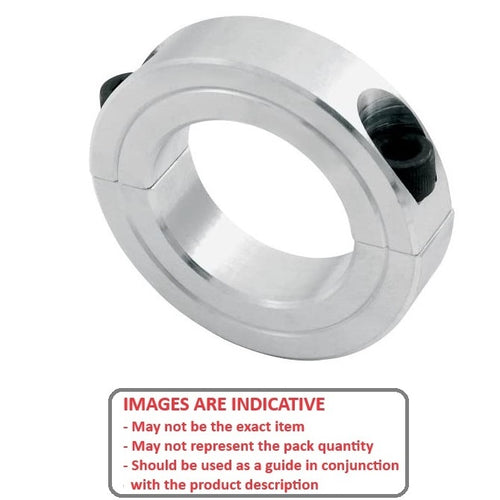

COL-01500-035-12-2C-AL - Datasheet
MBA
Category Information
Collars - Shaft - Clamp Type - Two Piece - AluminiumAluminium Two Piece Clamp Type Shaft Collars. This is the main category in this series
Product Data
- Suitable Shaft Size (d)
:
15.000
mm
+ 0.01 / + 0.05
(Equiv. 0.591 in.) - Outside Diameter (D)
35.00
mm
(Equiv. 1.378 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-SCNPAW15-12
- CSCNPAW1512
