0R-0150-0300-T5U - Datasheet

MBA

Category Information

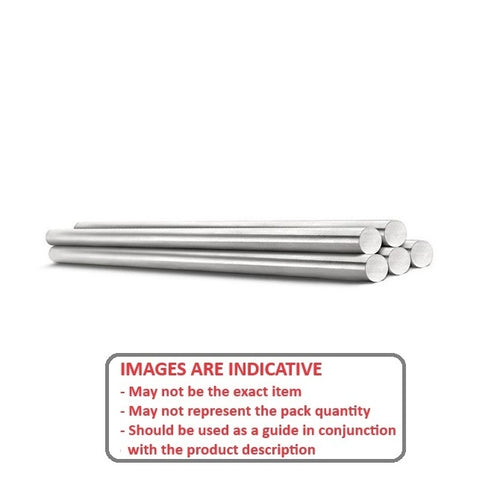

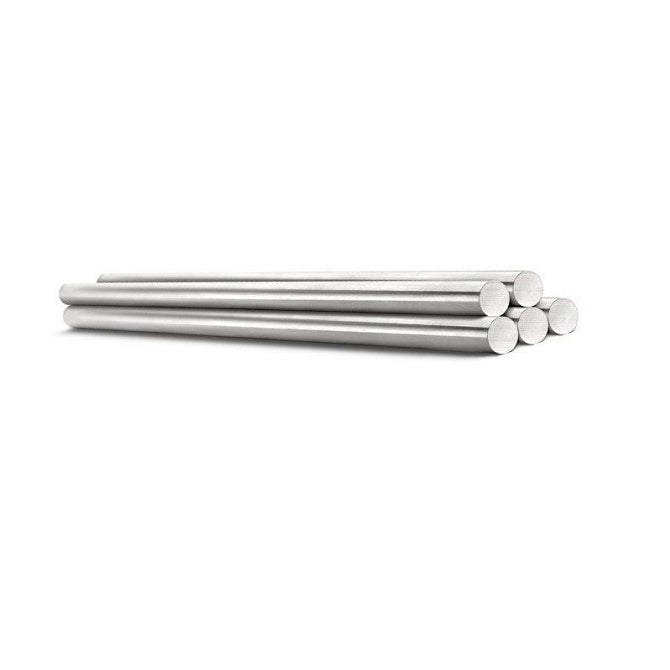

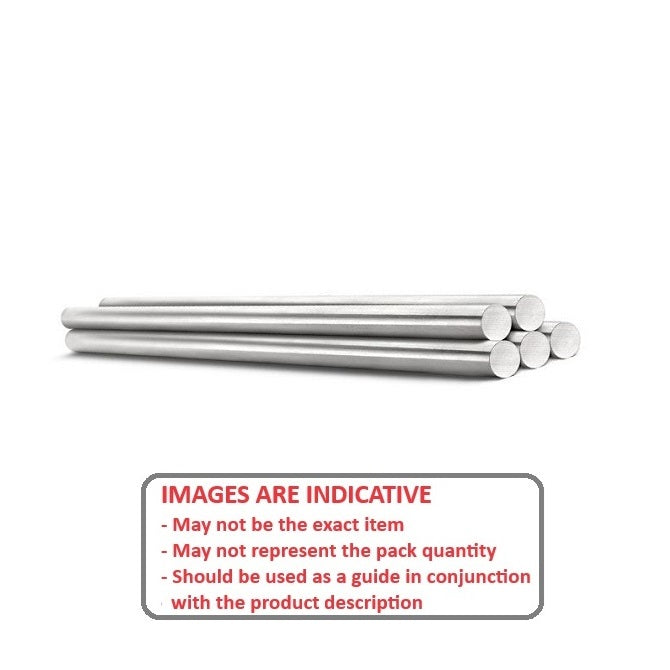

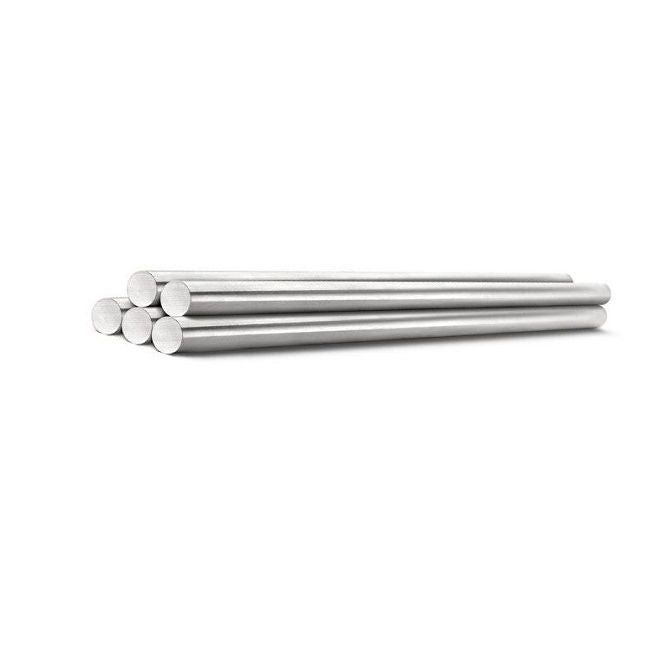

Shafting - Precision Ground - Titanium - High Strength

High Strength Titanium Precision Ground Shafting. Titanium shafting available in oversized and undersized tolerances

  • An expanded range may be available on special order. Please enquire.
  • Used in critical aircraft structural components. UNS R56400.
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5, 6Al-4V, TC4 is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
  • Shaft with undersized tolerances is suitable for use with precision ground bearings wih inner rings. HRC 36. Surface Finish Ra 0.8-1.6 um. Not suitable for running needle bearings directly.
  • Shaft with oversized tolerances is suitable for pulleys or gears requiring interference fits, or for machining to your required tolerances

Product Data

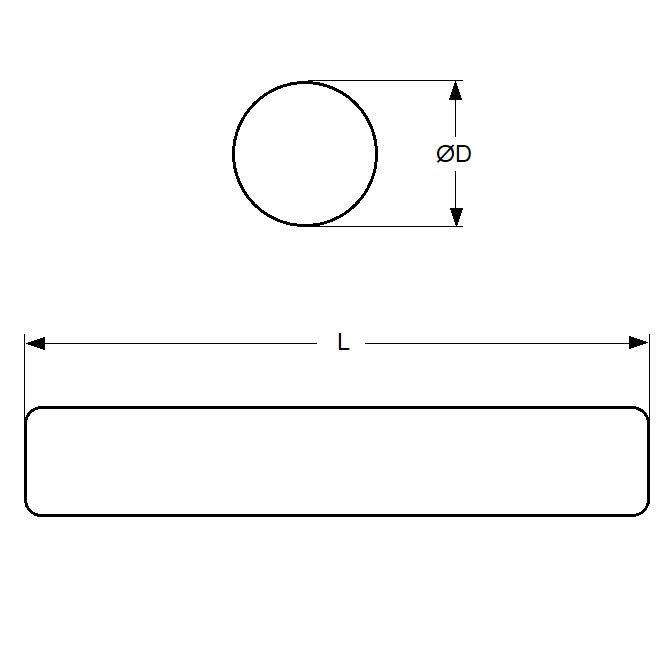

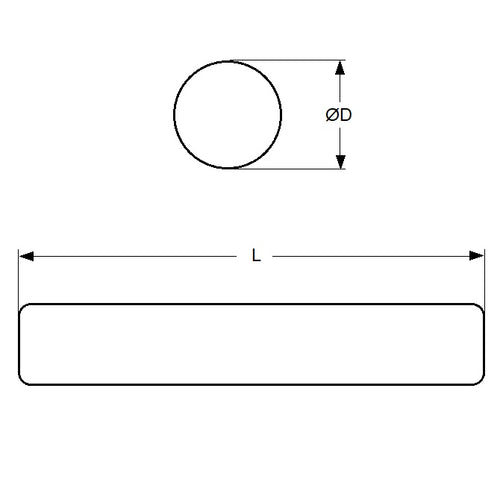

  • Diameter (d) : 15.000 mm - 0.005 / - 0.043
    (Equiv. 0.591 in.)
  • Length (L) 300 mm
    (Equiv. 11.811 in.)
  • Material Ti-Gr5/TC4
  • Ends Chamfered
  • End Colour Code Red / Black
  • Material Titanium High Strength
Country of Origin: TW
