BP0100-0150-0150-DP - Datasheet
MBA
Category Information

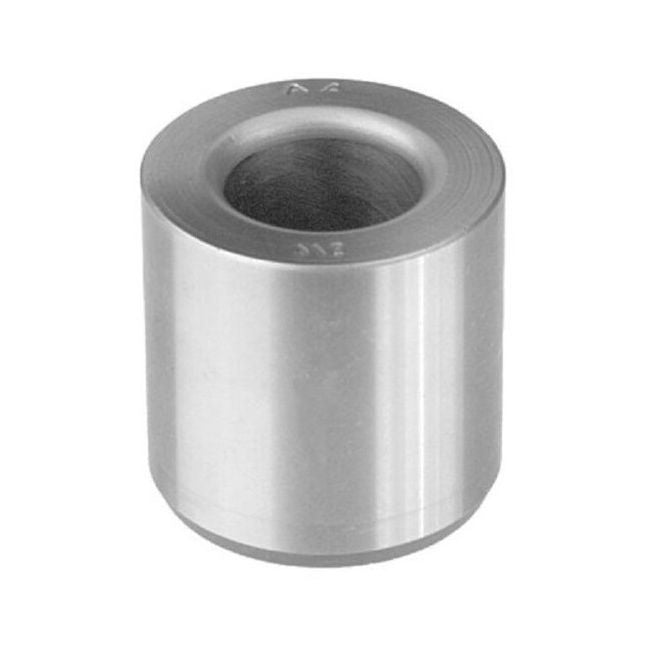

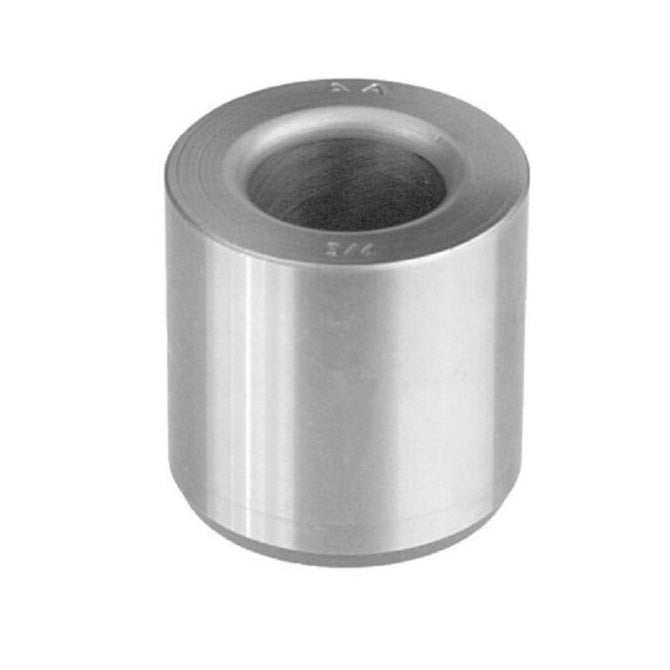

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD) : 15 mm
- Drill Size 10.000 mm
- Length 15.000 mm
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-JBAM10-15
- CJBAM1015
