CMM015-15-050M06-R45 - Datasheet
MBA
Category Information

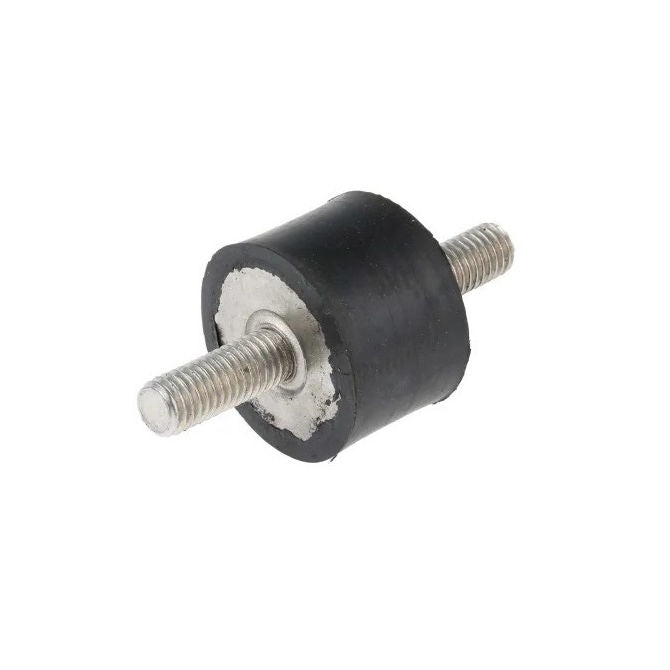

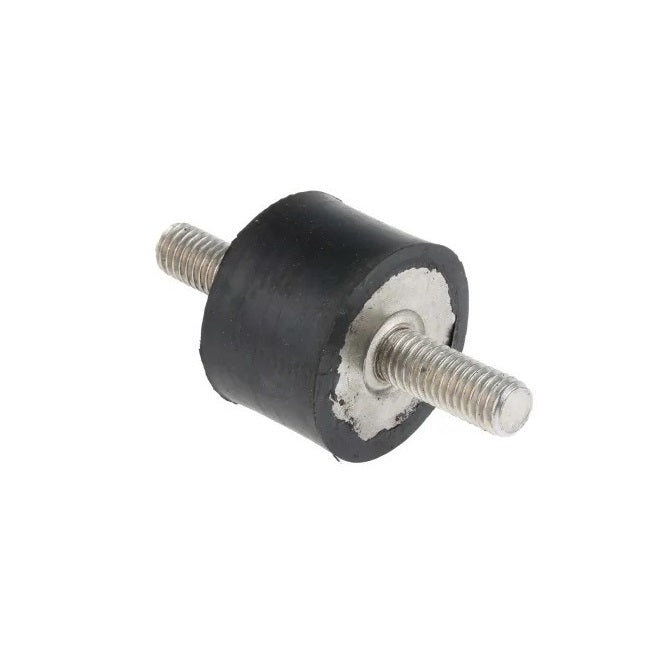

Mounts - Bobbin - MaleMale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Body Diameter (D)
:
15.0
mm
(Equiv. 0.591 in.) - Body Height (H)
15.0
mm
(Equiv. 0.591 in.) - Thread Size M5x0.8
- Shore Hardness 45
- Thread Length (L1) 6.0 mm
- Compression Load 5.8 (12) Kg (lbs)
- Deflection 1.3 mm
- Configuration Male to Male
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1515MM15-45
- 1515MM1545
