MR2514-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • ID (d) : 14.000 mm
    (Equiv. 0.551 in.)
  • OD (D) 25.000 mm
    (Equiv. 0.984 in.)
  • Width (B) 6.000 mm
    (Equiv. 0.236 in.)
  • Precision Grade Abec 1
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part MR2514
  • Limiting Speed 22605.4
  • Cage Type Polyamide
  • Static Load Rating KGf 114
  • Dynamic Load Rating KGf 223.4
  • Radii Undefined mm
  • Inner Shoulder (UI) Undefinedmm
  • Outer Shoulder (UO) Undefined mm
  • Number of Balls Undefined
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • Axe Rossi - LSK - 21 - Bearing 14-25-6mm
  • Axe Rossi - R21 - 21 - Bearing 14-25-6mm
  • Axe Rossi - ROSSI - 21 - Bearing 14-25-6mm
  • Axial - Spec 1S Size 28 - Rear Bearing 14-25-6mm
  • Axial - Spec 1S Size 32 - Rear Bearing 14-25-6mm
  • CEN - Matrix Ringer TR.28 - 25 - Bearing 14-25-6mm
  • CMB - EV02 - 45 - Bearing 14-25-6mm
  • CMB - EVO2 - 35 - Bearing 14-25-6mm
  • CMB - Red Head Marine - 35 - Bearing 14-25-6mm
  • Dynamite - Platinum SG Off Road - 0.21 - Bearing 14-25-6mm
  • Dynamite - Platinum SG Off Road - 427 - Bearing 14-25-6mm
  • Dynamite - Platinum SG With PS Off Road - 0.21 - Bearing 14-25-6mm
  • Dynamite - Platinum SG With PS Off Road - 0.28 - Bearing 14-25-6mm
  • HPI - Nitro Star K4.6 - 15 - Bearing 14-25-6mm
  • HPI - Pro RSC - 15 - Bearing 14-25-6mm
  • HPI - Pro RSC - 4.6 CC - Bearing 14-25-6mm
  • LRP Nitro - Z.21R - 12 - Bearing 14-25-6mm
  • LRP Nitro - Z.21R - 28 - Bearing 14-25-6mm
  • Nosram - RS 21 Evo - 25 - Bearing 14-25-6mm
  • OS - VG - 46 - Bearing 14-25-6mm
  • OS - VZ-B - 40 - Bearing 14-25-6mm
  • OS - VZ-B - 46 - Bearing 14-25-6mm
  • OS - VZ-R - 21 - Bearing 14-25-6mm
  • Racers - Axial - 21 - Bearing 14-25-6mm
  • Racers - Edge - 21 - Bearing 14-25-6mm
  • Racers - Edge - 32 - Bearing 14-25-6mm
  • SH - SH-21 Pro Competition Buggy - 12 - Bearing 14-25-6mm
  • STS - 21-30 - 51 - Bearing 14-25-6mm

Cross References

  • BOCA MR2514C-TH9-C3
  • BOCA MR2514CTH9-C3
  • MR2514CTH9C3
  • MR2514 Basic Size Ref
View full details

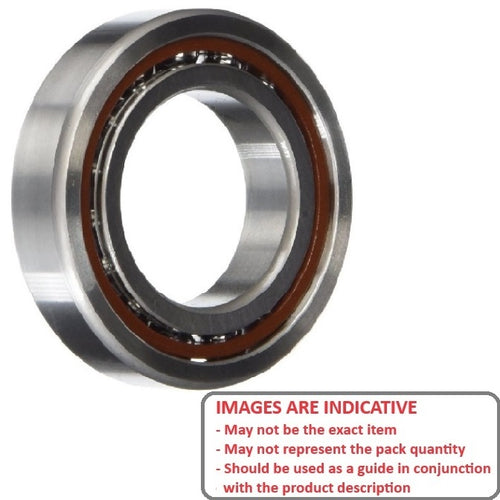

MR2514-CSN-T9H-ECODiagramMR2514-CSN-T9H-ECOImage
