MSM-095C-051-CGCAB - Datasheet
MBA
Category Information

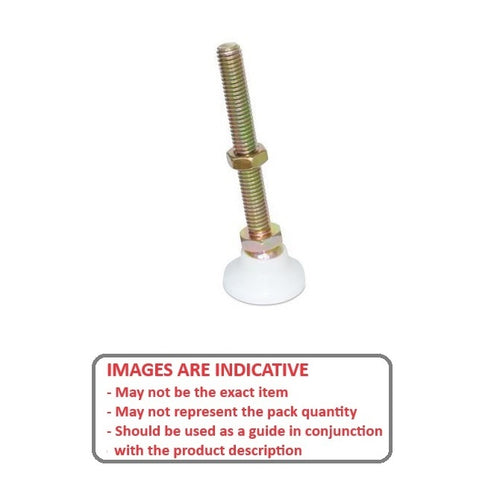

Mounts - Levelling Studded - Swivel - Gold Chromate - Acetal BaseAcetal Base Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Base Diameter (D)
31.8
mm
(Equiv. 1.252 in.) - Foot Height (C)
25.4
mm
(Equiv. 1 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 7.94 mm
- Overall Height 76.2 mm
- Load Rating 140 Kg
- Finish Gold Chromate
- Pad Material Delrin
- Hex Flats (B) 15.875 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM0140095CGA
- TD1
- TD-1
