TR-1400-1420-330-S3 - Datasheet
MBA
Category Information

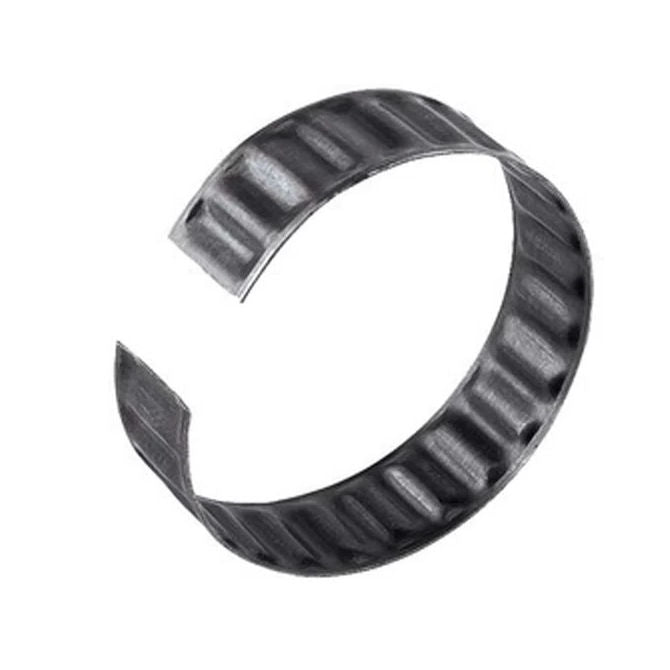

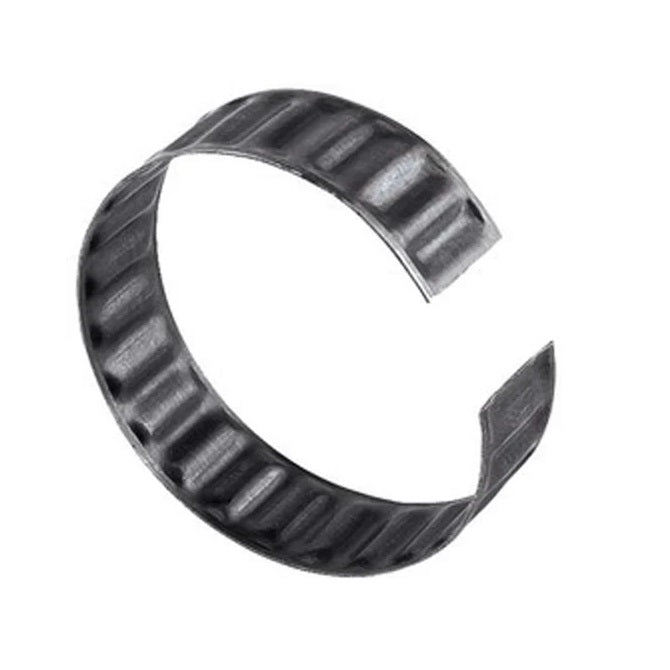

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

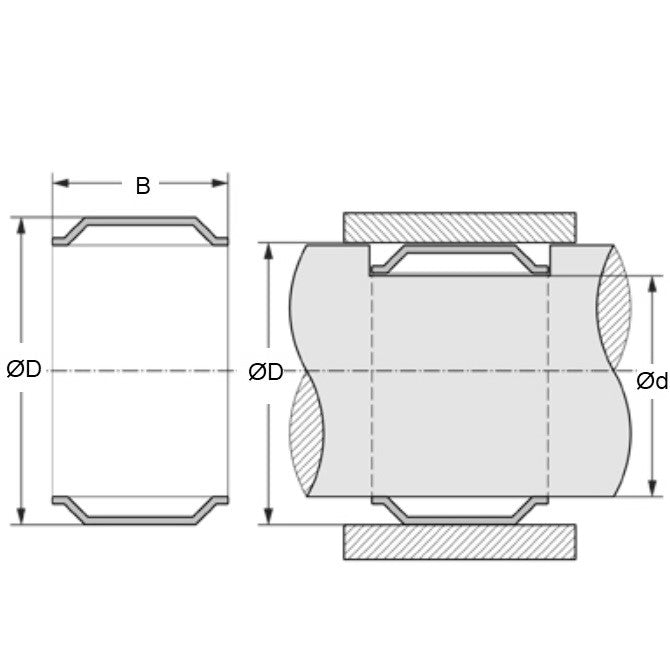

- Inner Part OD (d)
:
140.00
mm
(Equiv. 5.512 in.) - Housing ID (D)
141.90 to 141.98
mm
(Equiv. 5.587 in.) - Ring Width (B)
33.00
mm
(Equiv. 1.299 in.) - Style For bearing OD
- Max. Radial Load 1378 N
- To Suit OD of Bearing 6313
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- TR140014203303
