MLM-079C-038-CNP-LD - Datasheet
MBA
Category Information

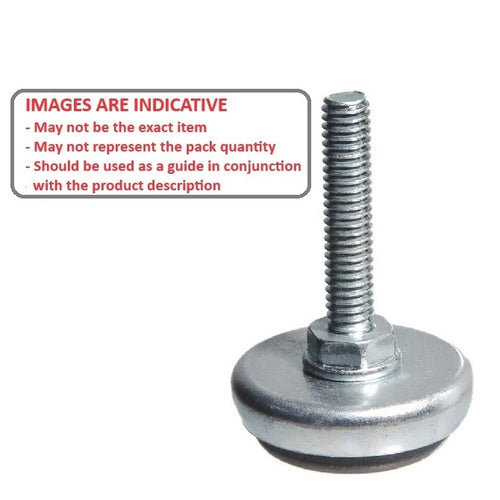

Mounts - Levelling Studded - Light Duty - Nylon PaddedNylon Padded Light Duty Levelling Studded Mounts. Levelling adjusters. For light duty levelling applications. Can be used on furniture, light duty machines, tables, cabinets, light weight equipment etc.
- An expanded range may be available on special order. Please enquire.
- For glide applications
Product Data

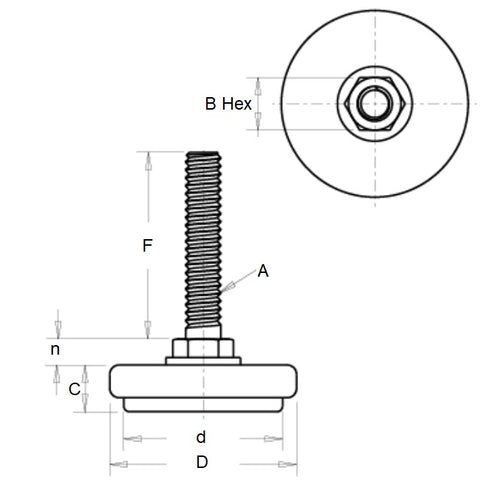

- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Base Diameter (D)
35.1
mm
(Equiv. 1.382 in.) - Foot Height (C)
12.7
mm
(Equiv. 0.5 in.) - Thread Length (F) 38.1 mm
- Base Height (E) 12.7 mm
- Overall Height 50.8 mm
- Load Rating 140 Kg
- Mount Diameter (C) 35.05
- Pad Diameter (d) 35.05 mm
- Pad Material Nylon
- Nut width (n) 12.70 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- VE-705
- VE705
- MLM0140079CN
