MLM-127C-051-CNP-LD - Datasheet
MBA
Category Information

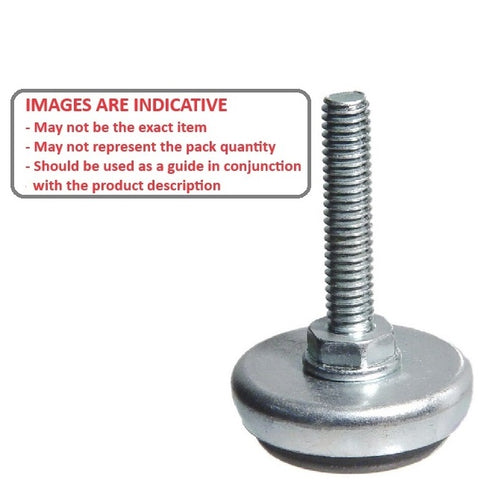

Mounts - Levelling Studded - Light Duty - Nylon PaddedNylon Padded Light Duty Levelling Studded Mounts. Levelling adjusters. For light duty levelling applications. Can be used on furniture, light duty machines, tables, cabinets, light weight equipment etc.
- An expanded range may be available on special order. Please enquire.
- For glide applications
Product Data

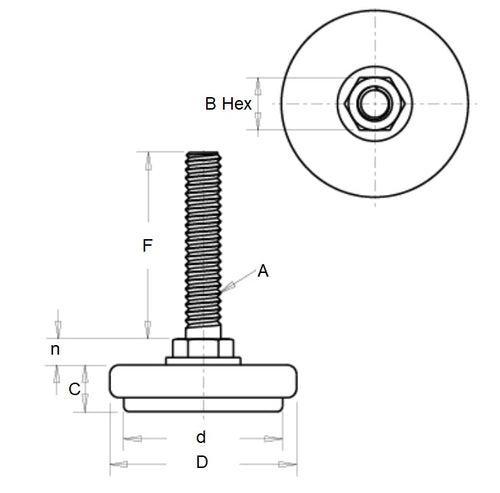

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
50.8
mm
(Equiv. 2 in.) - Foot Height (C)
12.7
mm
(Equiv. 0.5 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 12.7 mm
- Overall Height 63.5 mm
- Load Rating 140 Kg
- Mount Diameter (C) 50.80
- Pad Diameter (d) 50.80 mm
- Pad Material Nylon
- Nut width (n) 14.30 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- VE-707
- VE707
- MLM0140127CN
