SP1-191-117P-014-PB-C - Datasheet
MBA
Category Information
Sprockets - Roller Chain - Simplex - 12B - PlatePlate 12B Simplex Roller Chain Sprockets. Match with 19.05x11.68mm simplex steel chain (12B-1 BS)
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Pilot bored sprockets come with a very small bore that will need to be machined by the customer to suit their shaft size.
- British Standard 12B - 3/4 inch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 14

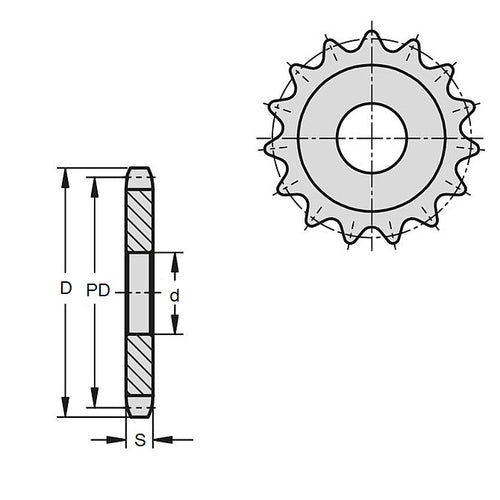

- PCD
84.86
mm
(Equiv. 3.341 in.) - Hub Diameter (D1) None
- Standard Number 12B-1
- Type / Rows Type 9
- Bore (d) Pilot Bore
- Locking Method None
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Sprocket 12A-1-14T
- 6836N276
