ES-1468-2032-18-M - Datasheet
MBA
Category Information

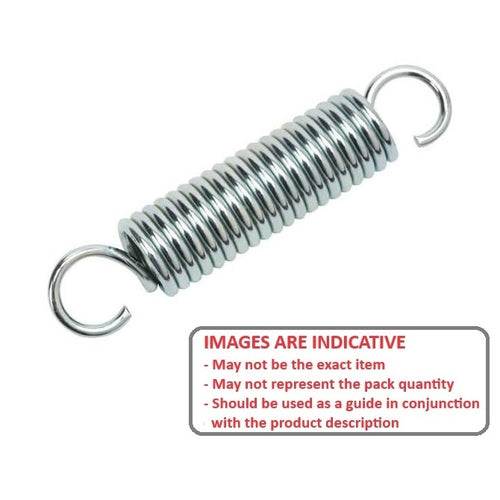

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.
Product Data

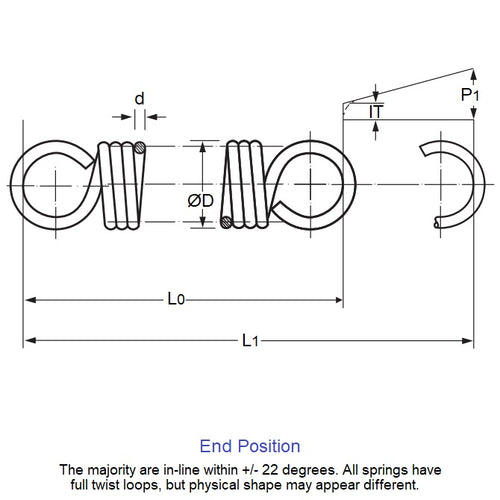

- OD (D0)
:
14.68
mm
(Equiv. 0.578 in.) - Approx. Overall Length (L0)
203.2
mm
(Equiv. 8 in.) - Wire Diameter (d)
1.83
mm
(Equiv. 0.072 in.) - Spring Rate 0.54 N/mm
- Initial Tension (IT) 0.5 N
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- ES2303
- ES-2303
