PGG-014-10 - Datasheet
MBA
Category Information

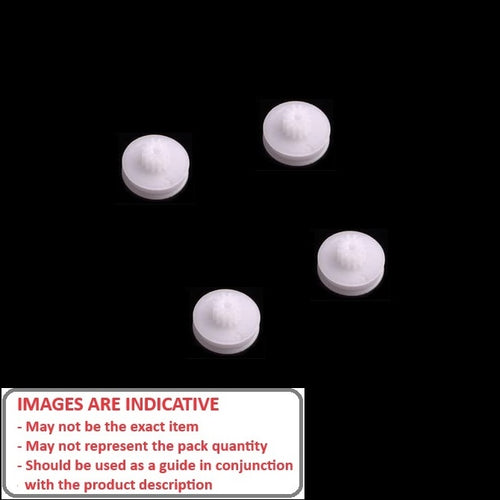

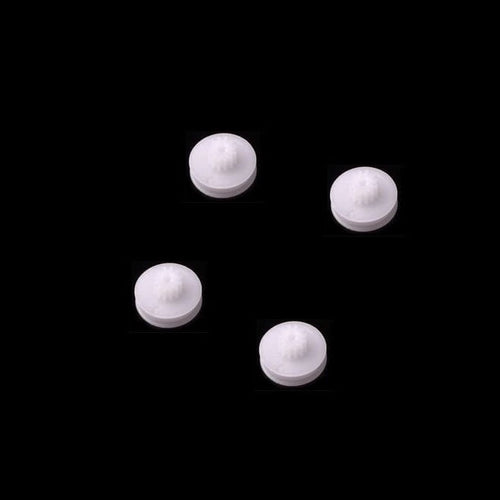

Pulleys - Geared - HobbyHobby Geared Pulleys. Small UPE grooved pulleys suitable for driving small o'rings or rubber bands. O-rings should be less than 2mm section diameter.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Outside Diameter
:
14.5
mm
(Equiv. 0.571 in.) - Bore Diameter
2.05
mm
(Equiv. 0.081 in.) - Teeth on Gear 10
- Gear Module Module 0.5
- Pulley Width 4.2 mm
- Overall Width 9 mm
- Material Plastic
