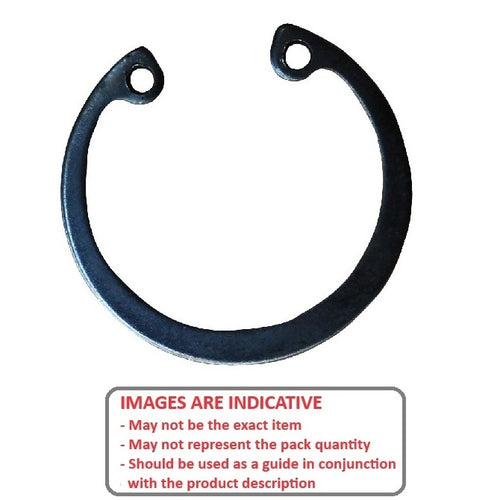

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Carbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Plain carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 14.29 mm
(Equiv. 0.563 in.)
Clip Thickness (T) 0.89 mm _{+/- 0.050}
(Equiv. 0.035 in.)
Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06}
(Equiv. 0.596 in.)
Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Groove Width (W) 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C) 7.11 mm
Clearance in Groove (C1) 8.13 mm
Min. Lug Diameter (h) 1.14 mm
Min. Extension (n) 1.30
Standard MIL-16625
Material Carbon Steel

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

99142A360
NoCor HO-056
Seeger J9-16X.039IN
J916X039IN
HO056
A9Q2856
A9Q28-56
N1300-0056APP
N13000056APP
