CCE-01429-B - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Beryllium Copper

Beryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Shaft Diameter (Ds) : 14.29 mm
    (Equiv. 0.563 in.)
  • Clip Thickness (T) 0.89 mm +/- 0.051
    (Equiv. 0.035 in.)
  • Groove Dia. (Dg) 13.46 mm +/- 0.051
    (Equiv. 0.53 in.)
  • Approx. Loose Circlip ID (A) 13.20 mm
  • Groove Width (W) 0.99 mm
  • Standard MIL-16624
  • Material Beryllium Copper
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor SH-056-BC
  • SH056BC
  • N1400-0056BC
  • N14000056BC
View full details

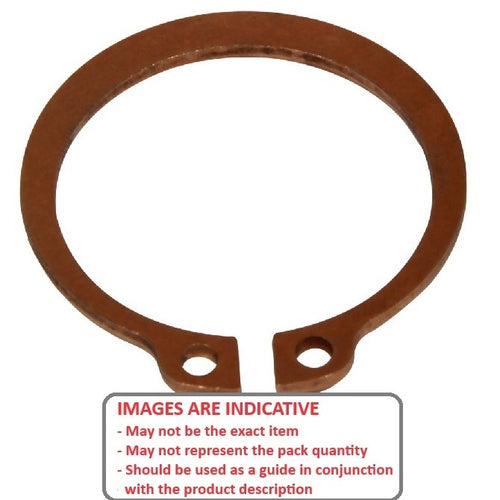

CCE-01429-BDiagramCCE-01429-BImage
