2R-0143-0254-0300-KZO - Datasheet
ExaktKey
Category Information

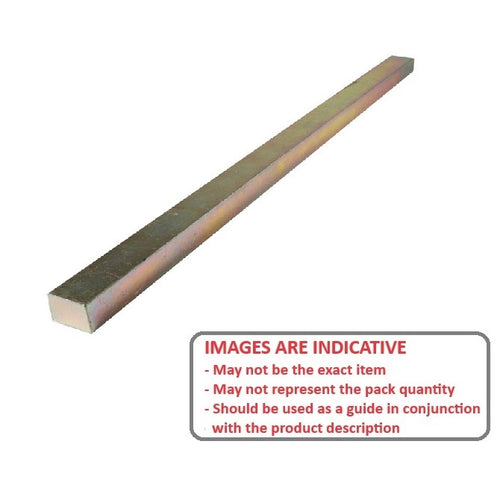

Keysteel Lengths - Rectangular - Zinc PlatedZinc Plated Rectangular Keysteel Lengths. Zinc plated carbon steel key steel. Rectangular steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
- Zinc plating may be silver or yellow in colour
Product Data
- Width (s1)
:
14.288
mm
+ 0.076 / - 0.00
(Equiv. 0.563 in.) - Height (s2)
25.400
mm
+ 0.076 / - 0.00
(Equiv. 1 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Finish Zinc Electroplate
- Tolerance Type Oversized
- Blue End Colour Code
- Material Carbon Steel 1045 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3605621000-12
- 98491A211
- PRECISION KS9-16x1
- KS916x1
- 360562100012
