Miniature Bearings Australia
COL-01429-025-11-CZ - Datasheet
MBA
Category Information

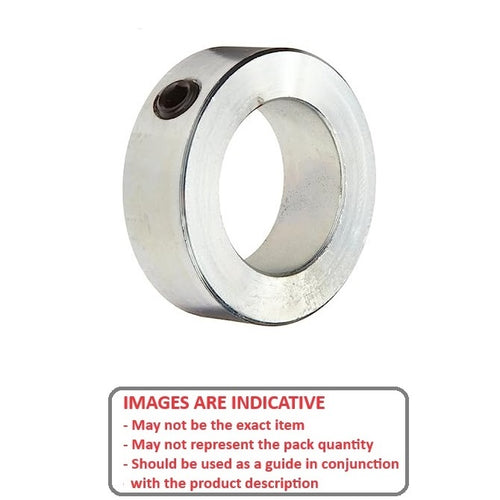

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
14.288
mm
+ 0.051 / - 0.000
(Equiv. 0.563 in.) - Outside Diameter (D) 25.40 mm
- Overall Width (S) 11.1 mm
- Screw Size 1/4-20 x 1/4
- Material Steel or Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K22
- Huyett® SC-0562-ZC
- NoCor® SC-0562-ZC
- SC0562ZC
- A7C2-13218
- A7C213218
