PFL-XL-011-C - Datasheet
MBA
Category Information

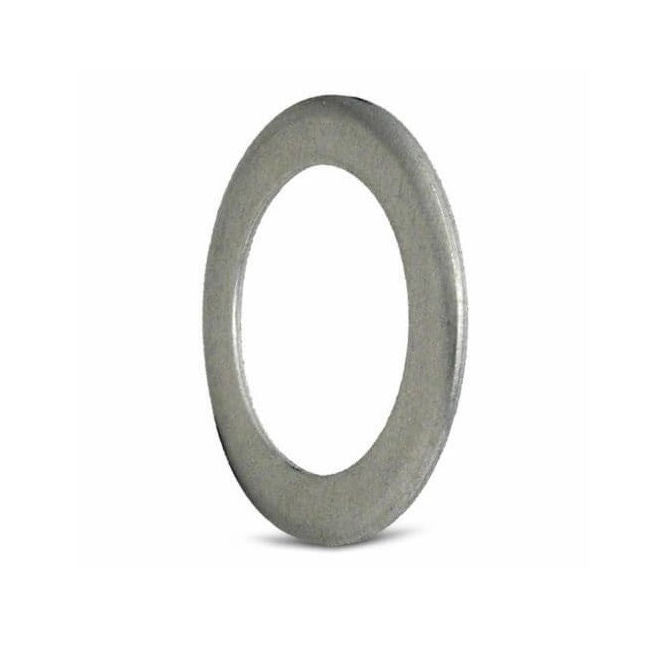

Pulley Flanges - Timing - Suit 5.080mm XL Series - Carbon SteelCarbon Steel Suit 5.080mm XL Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
Product Data
- Inside Diameter (d) : 14.270 mm
- Outside Diameter (D) 23.80 mm
- Suits Pulley Grooves 11 No.
- Width (H) 1.65 mm
- Thickness (S) 1.02 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates® 11XL-FS
- 11XLFS
- A6C2-11FS
- A6C211FS
