MR2513-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

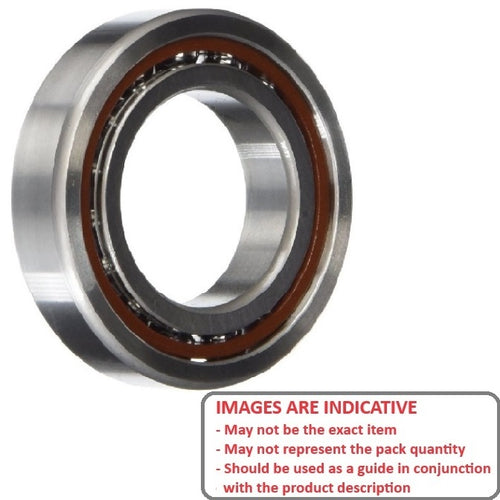

Open economy bearing with a high speed polyamide retainer

  • ID (d) : 13.000 mm
  • O.D. (D) 25.000 mm
  • Width (B) 6.000 mm
  • Precision Grade Economy
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part MR2513
  • Limiting Speed 47120
  • Cage Type Polyamide
  • Static Load Rating KGf 142.5
  • Dynamic Load Rating KGf 279.3
  • Radii 0.30 mm
  • Inner Shoulder (UI) 15.5mm
  • Outer Shoulder (UO) 20.4 mm
  • Number of Balls 10
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • Nova Rossi® - 2000 10 Port - 21 - Bearing
  • Nova Rossi® - 7 SB - 3.5 Rex - Replacement Rear Bearing
  • Nova Rossi® - BR21SB01 Rex - 21 3.5CC - Bearing
  • Nova Rossi® - BT21SB01 Top - 21 3.5CC - Bearing
  • Nova Rossi® - CX15R/N - 12 2.1CC - Bearing
  • Nova Rossi® - ER15R Rex - 12 2.1CC - Bearing
  • Nova Rossi® - ET15R Top - 15 2.5CC - Bearing
  • Nova Rossi® - Nova - 28 4.66CC - Bearing
  • Nova Rossi® - Rex 350 Short Stroke - Replacement Rear Bearing
  • Nova Rossi® - TR15R Rex - 28 4.66CC - Bearing
  • Nova Rossi® - TT15R Top - 12 21.CC - Bearing
  • Nova Rossi® - TX15R/N - 12 21.CC - Bearing
  • OS Engines® - RZ-B - 61 - Bearing
  • OS Engines® - RZ-BP - 21 - Bearing
  • OS Engines® - RZ-M - 21 - Bearing
  • OS Engines® - RZ-R P - 21 - Bearing
  • OS Engines® - RZ-V01B P - 21 - Bearing
  • OS Engines® - RZ-V99B - 21 - Bearing
  • OS Engines® - RZ-V99B P - 21 - Bearing
  • OS Engines® - SZ-H - 32 - Bearing
  • OS Engines® - SZ-H Ring Engine - 70 - Bearing
  • RB - 25 All Models - Bearing
  • RB - Concept.21 WS7 - 21 - Bearing
  • RB - S5 - 21 - Bearing
  • RB - S7 EUROPA - 21 - Bearing
  • RB - S7II - 5 - Bearing
  • RB - WS7 - 21 - Bearing
  • RB - WS7II - 12 - Bearing
  • RB - WS7III - 21 - Bearing
  • Rex Nova Rossi® - 7 SB - 3.5 - Replacement Rear Bearing
  • Rex® - 3.5 Serpent - 15 - Bearing
  • Rex® - SB - 120 - Bearing
  • Rex® - Serpent - 21 - Bearing
  • Rossi® - 21 - Replacement Rear Bearing
  • Rossi® - 21 Marine - Replacement Rear Bearing
  • Rossi® - 40 All Models - Bearing
  • Rossi® - Marine - 40 - Bearing
  • Rossi® - Nitro - 60 - Bearing
  • Sport Werks® - All - 27 - Bearing
  • TOP® - BT3.5BK - 54 - Bearing

Cross References

  • BOCA® MR2513TH9
  • BOCA® MR2513TH9-C3
  • MR2513TH9C3
  • MR2513 Basic Size Ref
