MR2413-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

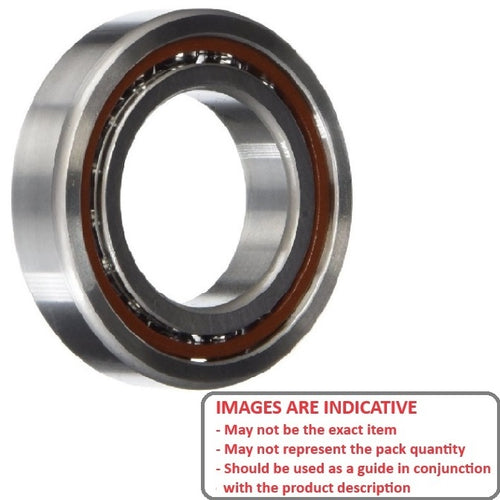

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

High speed polyamide cage. Ceramic balls.

ID (d) : 13.000 mm
(Equiv. 0.512 in.)
OD (D) 24.000 mm
(Equiv. 0.945 in.)
Width (B) 6.000 mm
(Equiv. 0.236 in.)
Precision Grade Abec 1
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR2413
Limiting Speed 47120
Cage Type Polyamide
Static Load Rating KGf 114
Dynamic Load Rating KGf 223.4
Radii 0.30 mm
Inner Shoulder (UI) 15.5mm
Outer Shoulder (UO) 20.4 mm
Number of Balls 11
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
Associate Electrics - AE.21 - 0.21 - Bearing 13-24-6mm
China Shanghai - CSGS / Car / Marine - 15 - Bearing
China Shanghai - CSGS / Car / Marine - 15 - Bearing 13-24-6mm
CMB - 45 All Models - Bearing 13-24-6mm
CMB - 67 All Models - Bearing 13-24-6mm
CMB - EVO Marine - 45 - Bearing 13-24-6mm
CMB - LS Green Head Marine - 45 - Bearing 13-24-6mm
CMB - Old - 21 - Bearing 13-24-6mm
CMB - RS - 21 - Bearing 13-24-6mm
CMB - RS - 35 - Bearing 13-24-6mm
CMB - TT Marine - 21 - Bearing 13-24-6mm
Dynamite - Mach 26 - 21 - Bearing 13-24-6mm
Dynamite - Mach 427 - 21 - Bearing 13-24-6mm
Dynamite - Mach 427 - 26 - Bearing 13-24-6mm
Fantom - FR27 - 40 - Bearing 13-24-6mm
Fantom - FR27 - 46 - Bearing 13-24-6mm
Force - All Other Rear Exhaust - 21 - Bearing 13-24-6mm
Force - E-1503 Rear Exhaust Not EFRA - 0.15 - Bearing 13-24-6mm
GS General Silicone - 15R - 61 - Bearing 13-24-6mm
GS General Silicone - 15R - 76 - Bearing 13-24-6mm
GS General Silicone - R25MT - 21 - Bearing 13-24-6mm
HPI - 21 - Bearing 13-24-6mm
HPI - 49 - Bearing 13-24-6mm
Irvine - Halman Special - 61 - Bearing 13-24-6mm
K.B - 7.5 All Models - Bearing 13-24-6mm
K.B - Outboard 13mm Crank - 3.5 - Bearing 13-24-6mm
LRP Nitro - Truggy 28 - 12 - Bearing 13-24-6mm
LRP Nitro - Truggy 28 - 15 - Bearing 13-24-6mm
LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Bearing 13-24-6mm
LRP Nitro - Z.28R Spec 2 Pullstart - 21 - Bearing 13-24-6mm
Mac - Outboard - 21 - Bearing 13-24-6mm
Nova Rossi - Nova - 15 - Bearing 13-24-6mm
Nova Rossi - Nova - 28 4.66CC - Bearing 13-24-6mm
Ofna - 21 - 15 2.5CC - Bearing 13-24-6mm
Ofna - Maxx 3.5 - 12 - Bearing
Ofna - Maxx 3.5 - 12 - Bearing 13-24-6mm
OPS - 15 All Models - Bearing 13-24-6mm
OPS - 90 All Models - Bearing 13-24-6mm
OPS - Pro - 30 - Bearing 13-24-6mm
OPS - Pro - 60 - Bearing 13-24-6mm
OPS - Rotor BRGS - 21 - Bearing 13-24-6mm
OPS - Rotor BRGS - 60 - Bearing 13-24-6mm
Orion - 0.21 SB - 90 - Bearing
Orion - 0.21 SB - 90 - Bearing 13-24-6mm
OS - EX-B - 12 - Bearing 13-24-6mm
OS - EX-M ABC RC - 65 - Bearing 13-24-6mm
OS - EX-R ABC RC - 21 - Bearing 13-24-6mm
OS - Outboard Marine - 16 - Bearing 13-24-6mm
OS - Outboard Marine - 40 - Bearing 13-24-6mm
OS - RF-B ABC RC - 21 - Bearing 13-24-6mm
OS - RX-B - 140 - Bearing 13-24-6mm
OS - RX-B - 15 - Bearing 13-24-6mm
OS - RX-M Marine - 61 - Bearing 13-24-6mm
OS - SE-B ABC RC - 21 - Bearing 13-24-6mm
OS - SE-M ABC RC - 21 - Bearing 13-24-6mm
OS - SE-R ABC RC - 21 - Bearing 13-24-6mm
OS - VF-R ABC RC - 25 - Bearing 13-24-6mm
OS - XM Marine Outboard - 61 - Bearing 13-24-6mm
Picco - 90 All Models - Bearing 13-24-6mm
Picco - Max - 80 - Bearing
Picco - Max - 80 - Bearing 13-24-6mm
Picco - P 3.5 Max - 80 - Bearing
Picco - P 3.5 Max - 80 - Bearing 13-24-6mm
Picco - P2 - 90 - Bearing
Picco - P2 - 90 - Bearing 13-24-6mm
Picco - P5 - 26 - Bearing 13-24-6mm
Picco - P5 - 27 - Bearing 13-24-6mm
Picco - P5 EXR - 21 - Bearing 13-24-6mm
Picco - P5 EXR - 27 - Bearing 13-24-6mm
Picco - P6 - 21 - Bearing 13-24-6mm
RB - 15 All Models - Bearing 13-24-6mm
RB - 25 All Models - Bearing 13-24-6mm
RB - All Models - Bearing 13-24-6mm
RB - X - 12 - Bearing 13-24-6mm
RB - X - 21 - Bearing 13-24-6mm
Rossi - Blackhead - 15 - Bearing 13-24-6mm
Rossi - Blackhead - 91 - Bearing 13-24-6mm
Rossi - Marine Old - 80 - Bearing
Rossi - Marine Old - 80 - Bearing 13-24-6mm
Rossi - Revo Marine - 40 - Bearing 13-24-6mm
Rossi - Revo Marine - 60 - Bearing 13-24-6mm
Russian - Pro F - 46 - Bearing
Russian - Pro F - 46 - Bearing 13-24-6mm
SH - SH-28 - 21 - Bearing 13-24-6mm
SH - SH-28 Pro - 21 - Bearing 13-24-6mm
SH - SH-28 Pro - 28 - Bearing 13-24-6mm
Super Tigre - G34 - 35 - Bearing 13-24-6mm
TOP - CT12 - 91 - Bearing 13-24-6mm
XTM Racing - 24.7 Pro - 18 - Bearing 13-24-6mm
XTM Racing - 24.7 Pro - 21 - Bearing 13-24-6mm
XTM Racing - 24.7 Pull Start - 18 - Bearing 13-24-6mm
XTM Racing - 24.7 Pull Start - 24.7 - Bearing 13-24-6mm

Cross References

BOCA MR6901-13C-TH9-C3
MR2413
MR690113CTH9C3
MR2413 Basic Size Ref
