MR2413-C3-T9H - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

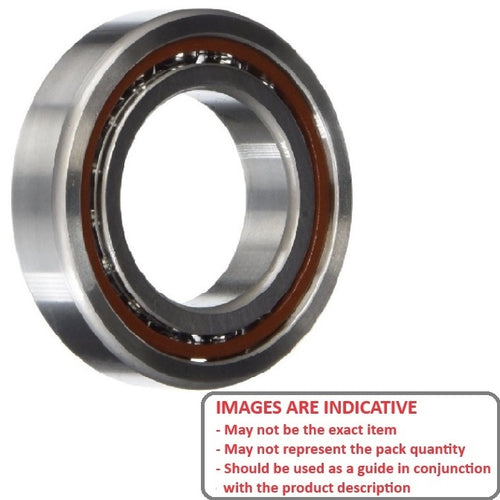

Open standard bearing with a high speed polyamide retainer

  • ID (d) : 13.000 mm + 0.000 / - 0.0075
    (Equiv. 0.512 in.)
  • O.D. (D) 24.000 mm + 0.000 / - 0.010
    (Equiv. 0.945 in.)
  • Width (B) 6.000 mm + 0.000 / - 0.125
    (Equiv. 0.236 in.)
  • Precision Grade Abec 1
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name Standard Unspecified
  • Basic Part MR2413
  • Limiting Speed 57600
  • Cage Type Polyamide
  • Static Load Rating KGf 150
  • Dynamic Load Rating KGf 294
  • Radii 0.30 mm
  • Inner Shoulder (UI) 15.5mm
  • Outer Shoulder (UO) 20.4 mm
  • Number of Balls 11
  • Clearance C3 (11 to 25)
  • Precision Grade Abec 1
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • RC Nitro Engine Parts
  • Serpent® - 5x5 Mega Engine - Replacement Rear Bearing
  • Associate Electrics® - AE.21 - 0.21 - Bearing
  • China Shanghai® - CSGS / Car / Marine - 15 - Bearing
  • CMB - 21 All Models - Bearing
  • CMB - 21 LS Green Head - Replacement Rear Bearing
  • CMB - 67 All Models - Bearing
  • CMB - EVO Marine - 45 - Bearing
  • CMB - LS Green Head Marine - 45 - Bearing
  • CMB - Old - 21 - Bearing
  • CMB - RS - 35 - Bearing
  • CMB - TT Marine - 21 - Bearing
  • Dynamite® - Mach 26 - 21 - Bearing
  • Dynamite® - Mach 26 - 29 - Bearing
  • Dynamite® - Mach 427 - 21 - Bearing
  • Dynamite® - Mach 427 - 26 - Bearing
  • Fantom® - FR27 - 40 - Bearing
  • Fantom® - FR27 - 46 - Bearing
  • Force® - All Other Rear Exhaust - 21 - Bearing
  • Force® - All Other Rear Exhaust - 61 - Bearing
  • Force® - E-1503 Rear Exhaust Not EFRA - 0.15 - Bearing
  • Force® - E-1503 Rear Exhaust Not EFRA - 0.21 - Bearing
  • GS General Silicone - 15R - 47 - Bearing
  • GS General Silicone - 15R - 61 - Bearing
  • GS General Silicone - R25MT - 0.15 - Bearing
  • GS General Silicone - R25MT - 21 - Bearing
  • HPI - 21 - Bearing
  • HPI - 49 - Bearing
  • Irvine® - Halman Special - 61 - Bearing
  • K.B - 3.5 Outboard X.196 - Replacement Rear Bearing
  • K.B - 45 - Replacement Rear Bearing
  • K.B - 7.5 All Models - Bearing
  • K.B - Outboard 13mm Crank - 3.5 - Bearing
  • LRP Nitro - Truggy 28 - 15 - Bearing
  • LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Bearing
  • Mac® - Outboard - 21 - Bearing
  • Nova Rossi® - CX15 2.5cc - Replacement Rear Bearing
  • Nova Rossi® - Nova - 15 - Bearing
  • Nova Rossi® - Nova - 28 4.66CC - Bearing
  • Ofna® - 21 - 15 2.5CC - Bearing
  • Ofna® - Maxx 3.5 - 12 - Bearing
  • OPS - 3.5 -21 Pro - Replacement Rear Bearing
  • OPS - 90 All Models - Bearing
  • OPS - Pro - 30 - Bearing
  • OPS - Pro - 60 - Bearing
  • OPS - Rotor BRGS - 21 - Bearing
  • OPS - Rotor BRGS - 60 - Bearing
  • Orion - 0.21 SB - 90 - Bearing
  • OS Engines® - 21 EX-M ABC RC MAR - Replacement Rear Bearing
  • OS Engines® - 21 EX-R ABC RC - Replacement Rear Bearing
  • OS Engines® - 21 RF-B ABC RC - Replacement Rear Bearing
  • OS Engines® - 21 RX-B RX-M - Replacement Rear Bearing
  • OS Engines® - 21 SE-B ABC RC - Replacement Rear Bearing
  • OS Engines® - 21 SE-M ABC RC MAR - Replacement Rear Bearing
  • OS Engines® - 21 SE-R ABC RC - Replacement Rear Bearing
  • OS Engines® - 21 VF-R ABC RC - Replacement Rear Bearing
  • OS Engines® - EX-B - 12 - Bearing
  • OS Engines® - EX-M ABC RC - 12 - Bearing
  • OS Engines® - EX-R ABC RC - 65 - Bearing
  • OS Engines® - Outboard Marine - 120 - Bearing
  • OS Engines® - Outboard Marine - 16 - Bearing
  • OS Engines® - RF-B ABC RC - 21 - Bearing
  • OS Engines® - RX-B - 140 - Bearing
  • OS Engines® - RX-B - 15 - Bearing
  • OS Engines® - RX-M Marine - 61 - Bearing
  • OS Engines® - SE-B ABC RC - 21 - Bearing
  • OS Engines® - SE-M ABC RC - 21 - Bearing
  • OS Engines® - SE-R ABC RC - 21 - Bearing
  • OS Engines® - VF-R ABC RC - 25 - Bearing
  • OS Engines® - XM Marine Outboard - 21 - Bearing
  • OS Engines® - XM Marine Outboard - 61 - Bearing
  • Picco® - 21 EXR - 2 Stroke - Replacement Rear Bearing
  • Picco® - 61 All Models - Bearing
  • Picco® - 90 All Models - Bearing
  • Picco® - F1 -P5 21 - Replacement Rear Bearing
  • Picco® - Max - 90 - Bearing
  • Picco® - P 3.5 Max - 80 - Bearing
  • Picco® - P2 - 90 - Bearing
  • Picco® - P5 - 21 - Bearing
  • Picco® - P5 - 26 - Bearing
  • Picco® - P5 EXR - 21 - Bearing
  • Picco® - P5 EXR - 27 - Bearing
  • Picco® - P6 - 21 - Bearing
  • Picco® - RS21 3.5cc Mega - Replacement Rear Bearing
  • RB - 15 All Models - Bearing
  • RB - 2.5cc 15 - Replacement Rear Bearing
  • RB - All Models - Bearing
  • RB - X - 21 - Bearing
  • Rossi® - 20 Nova Rossi - Replacement Rear Bearing
  • Rossi® - 21 Old Marine - Replacement Rear Bearing
  • Rossi® - 21 Revo Marine - Replacement Rear Bearing
  • Rossi® - 40 Nova - Replacement Rear Bearing
  • Rossi® - Blackhead - 91 - Bearing
  • Rossi® - Marine Old - 45 - Bearing
  • Rossi® - Revo Marine - 40 - Bearing
  • Rossi® - Revo Marine - 60 - Bearing
  • Russian® - Pro F - 46 - Bearing
  • SH - SH-28 - 12 - Bearing
  • SH - SH-28 Pro - 21 - Bearing
  • SH - SH-28 Pro - 28 - Bearing
  • Super Tigre® - G34 - 2 Stroke - Replacement Rear Bearing
  • Super Tigre® - G34 - 20 - Bearing
  • Super Tigre® - G34 - 35 - Bearing
  • Super Tigre® - G34H Heli - 2 Stroke - Replacement Rear Bearing
  • Thunder Tiger® - Pro 21B - RC ABS-RC - Replacement Rear Bearing
  • TOP® - CT12 - 91 - Bearing
  • XTM Racing - 24.7 Pro - 21 - Bearing
  • XTM Racing - 24.7 Pull Start - 18 - Bearing
  • XTM Racing - 24.7 Pull Start - 24.7 - Bearing

Cross References

  • SMB 6901-13TNH
  • CSR AY13
  • ADR AY13TWC3
  • BOCA® MR2413-TNH-C3
  • BOCA® MR6901-13TH9
  • SMB MR6901-13TH9
  • WIB O1300SD-T9H-R23-WW-613246SD
  • O1300SDT9HR23WW613246SD
  • MR2413T9HC3
  • MR2413TNHC3
  • MR690113TH9
  • 690113TNH
  • AY13-T9H
  • AY13T9H
  • MR2413 Basic Size Ref
