P-XL-013-200C - Datasheet

MBA

Category Information

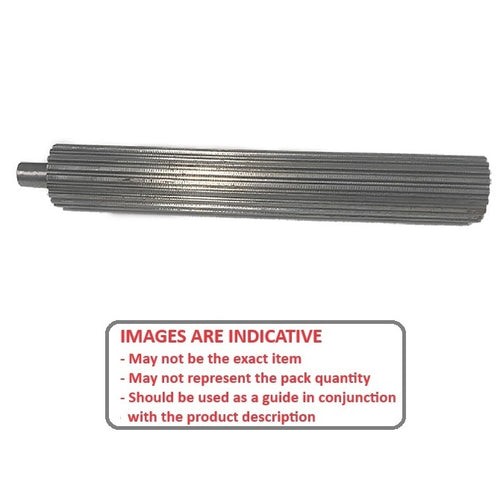

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon Steel

Carbon Steel 5.080mm Pitch XL Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Product Data

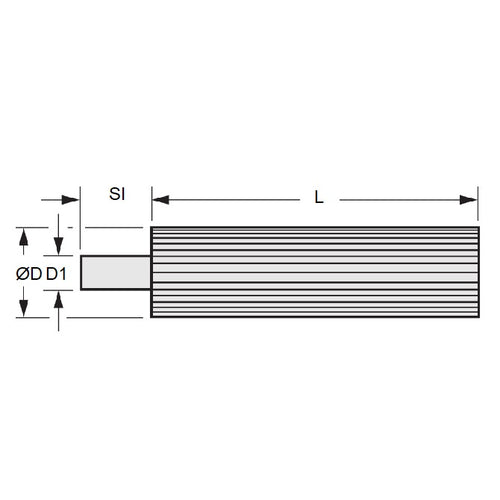

  • Number of Teeth : 13
  • Min. Usable Length (L) 200.0 mm
    (Equiv. 7.874 in.)
  • Pitch Diameter (PD) 21.01 mm
    (Equiv. 0.827 in.)
  • Outside Diameter (OD) 20.52 mm
  • Shank Diameter (D1) 12.70 mm
  • Shank Length (Sl) 19.1 mm
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 13XL-PS8S
  • 13XLPS8S
  • A6C213XL08
  • A6C2-13XL08
  • A6C2M13XL20
