BTU0136-043-TS-C - Datasheet
MBA
Category Information

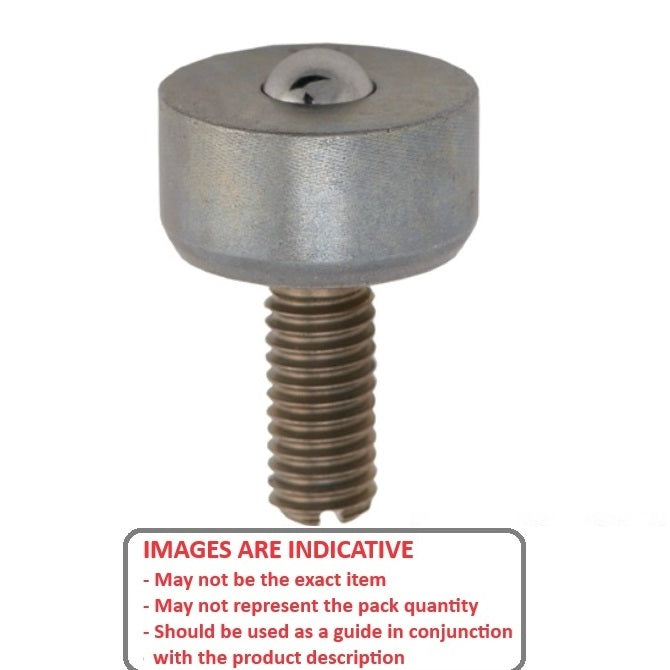

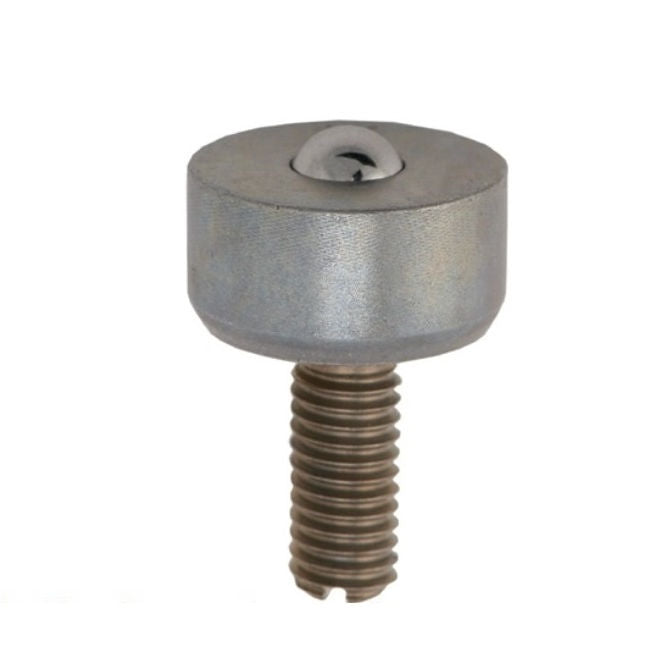

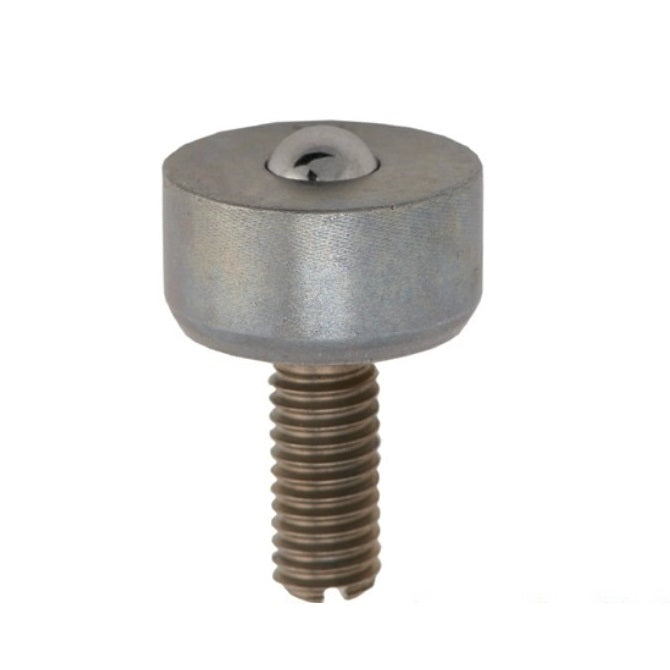

Ball Transfer Units - Screw Stem - Steel - PrecisionPrecision Steel Screw Stem Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 136 kg

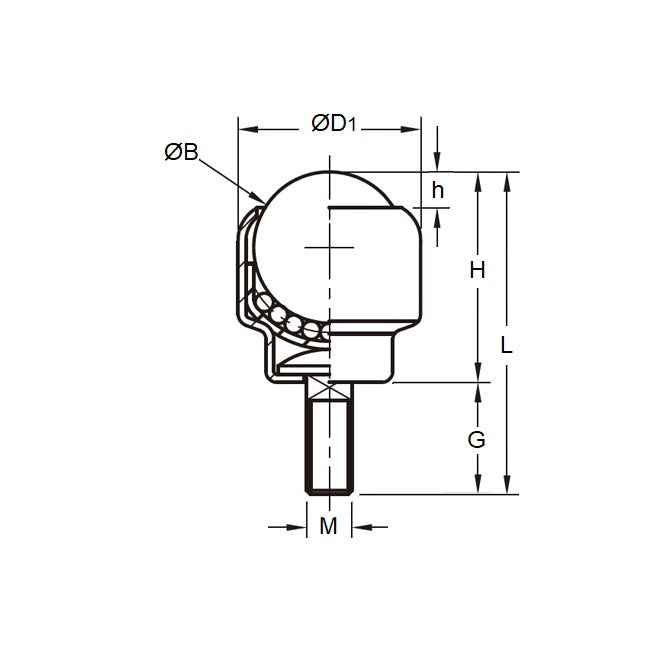

- Height from Base (B)
42.7
mm
(Equiv. 1.681 in.) - Body Diameter (D)
44.45
mm
(Equiv. 1.75 in.) - Overall Height (L) 72.4 mm
- Ball Diameter 25.4 mm
- Body Height (H) 42.7 mm
- Thread 1/2-20 UNF
- Stud Length (Sl) 24.1 mm
- 1 Type
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-7127
- SKF7127
