BTU0136-006-B-C-HD - Datasheet
MBA
Category Information

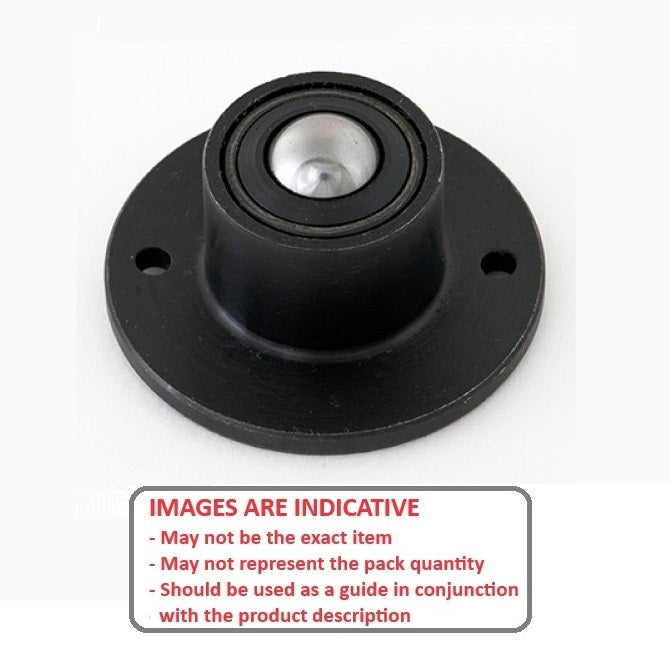

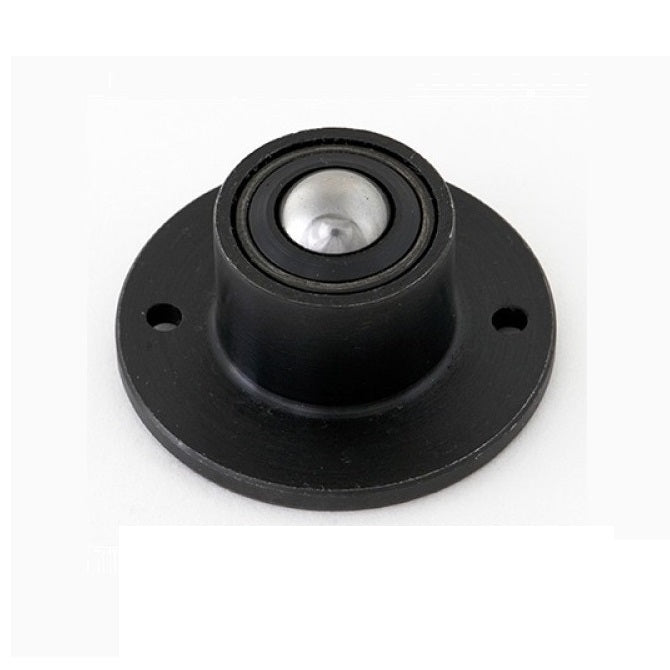

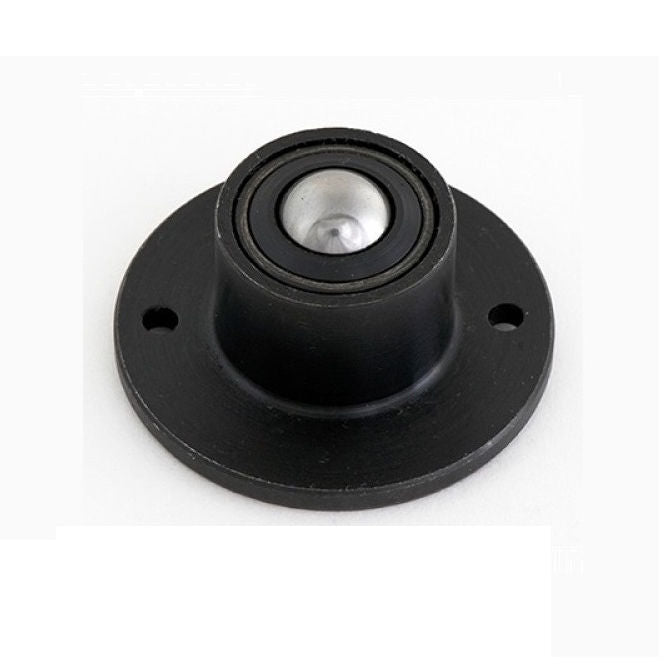

Ball Transfer Units - Base Mount - Heavy Duty SteelHeavy Duty Steel Base Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 136 kg

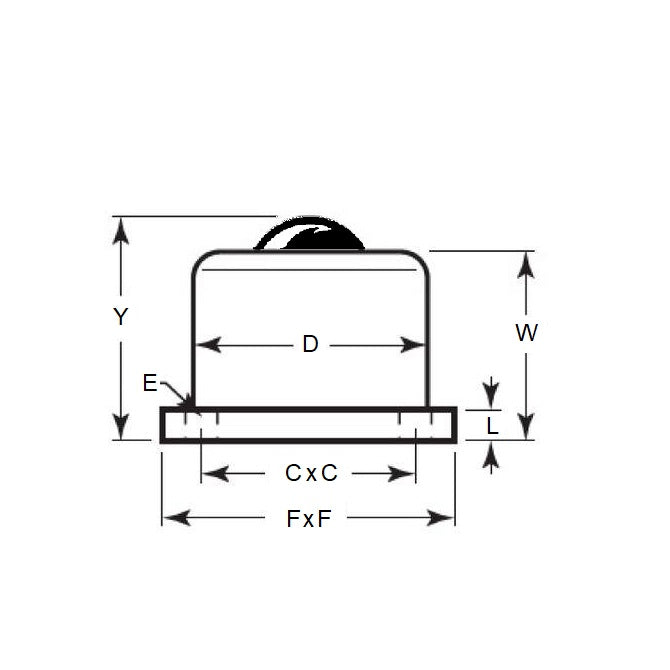

- Overall Height
41.4
mm
(Equiv. 1.63 in.) - Height from Base (B)
5.6
mm
(Equiv. 0.22 in.) - Body Diameter (D) 44.45 mm
- Ball Diameter 25.4 mm
- Body Height 35.8 mm
- Flange Diameter 57.2 mm
- Flange Thickness 4.8 mm
- Fixing Hole Size 5.6 mm
- Hole Centres 44.5 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-7122
- SKF7122
