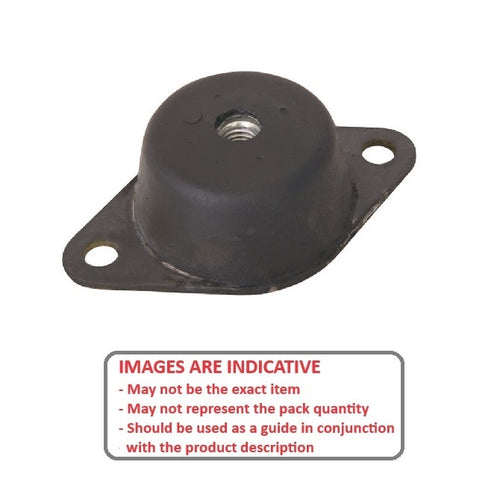

MBN2-0136-29-0953C - Datasheet

MBA

Product Data

• Rated Load : 136.100 kg (lbs)

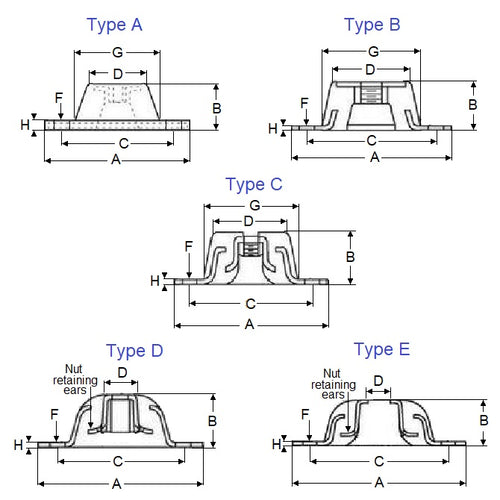

• Style C
• Length (A) 95.250 mm
  (Equiv. 3.75 in.)
• Height (B) 28.575 mm
• Bolt Centres (C) 76.200 mm
• D 44.45 mm
• G 55.56 mm
• F 8.73 mm
• H 3.18 mm
• 3/8-16 Thread
• Durometer 40
• Material Neoprene Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• KR692
• KR-69-2
