G106P-132-M08-030-100-AL - Datasheet
MBA
Category Information

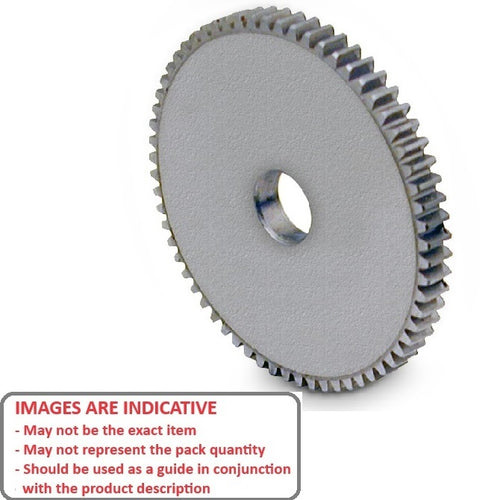

Gears - Spur - Hubless - Module 0.8 - AluminiumAluminium Module 0.8 Hubless Spur Gears. PCD in mm = No. of Teeth x 0.8. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.8mm per tooth
- Module 0.8. Approximately 2.51mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 132

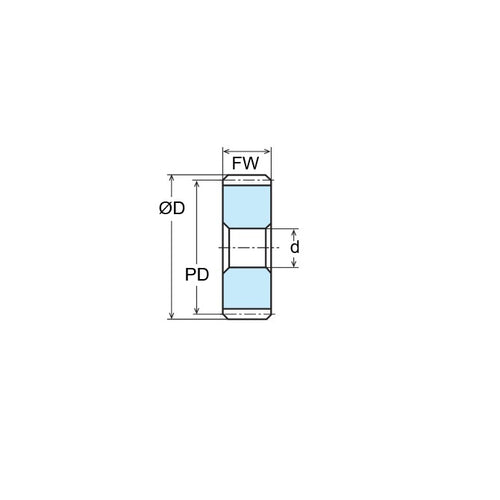

- Pitch Circle Diameter (PD)
105.60
mm
(Equiv. 4.157 in.) - Bore (d)
10.000
mm
(Equiv. 0.394 in.) - Outside Diameter (OD) 107.20 mm
- Face Width (FW) 3.00 mm
- Type Hubless
- Quality ISO 7 - ( AGMA 10 )
- Material Aluminium Alloy 2024
Product Compliance and Data
Additional Resources
Cross References
- G106B132M08030100ALN
