WLB130-175-20-ST - Datasheet
MBA
Category Information

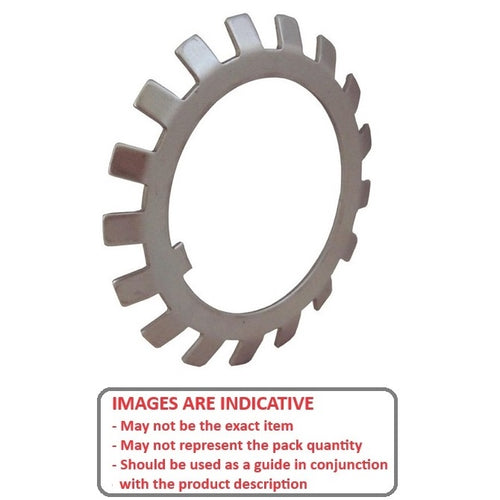

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- For use with bearing lock nuts
Product Data
- Approximate ID (D1)
:
130.00
mm
(Equiv. 5.118 in.) - Approx OD (D5)
175
mm
(Equiv. 6.89 in.) - Tabs 19 Nr.
- Inner Tab Width (E) 14.00 mm
- Outer Tab Width (S) 12.00 mm
- Inner Face (D4) 149.0 mm
- thickness (t) 2.0 mm
- Matching Locknut AN / KM26
- Inner Tab Type Straight ISO 2982
- Series MB / AW-X
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor MB-26
- MB26
