CS-1375-0905-13-S2-C - Datasheet
MBA
Category Information

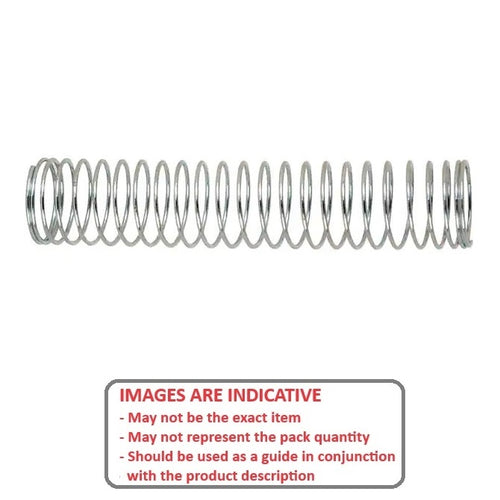

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
13.75
mm
+/- 0.381
(Equiv. 0.541 in.) - Free Length (L0)
90.5
mm
+/- 2.54
(Equiv. 3.563 in.) - Wire Diameter (d)
1.25
mm
+/- 0.018
(Equiv. 0.049 in.) - Loaded Height (L1) 23.10 mm
- Load at L1 57.51 N
- Rate (P/f) 0.9 N/mm
- Solid Height (Sh) 18.10 mm
- Approx. ID 11.3 mm
- End Type Closed
- Max Rod Dia. (A) 10.56 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 94125K177
- CD2228
