BNGCAP-134-109-R - Datasheet
MBA
Category Information
Bungs and CapsBungs and Caps. Tapered plastic bungs fit inside round tube or over the outside ends of rod, tube or shafting.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Can be used on threaded or unthreaded parts.
- Used as bungs to fit in the end of tubing, or caps for rod tips. Helps prevent damage to the product ends. Helps prevent injury from sharp edges.
- Reversible round shaped
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Approximate Plugging Size
:
13.39
mm
(Equiv. 0.527 in.) - Approx. Capping Size
10.89
mm
(Equiv. 0.429 in.) - Colour Red

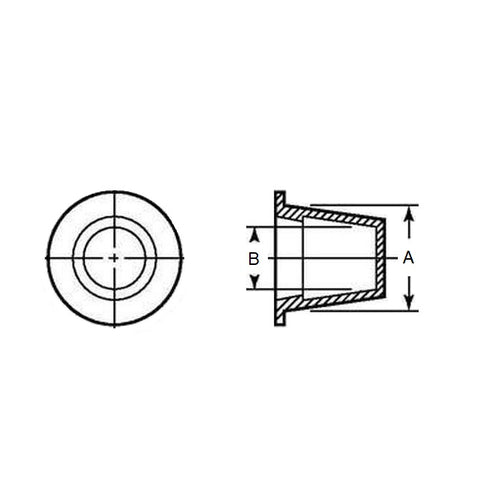

- A 13.89 mm
- B 10.39 mm
- Quantity Per Box 100
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- CPL40
- CPL-40
