CS-1300-0200-10-S4-G - Datasheet
MBA
Category Information

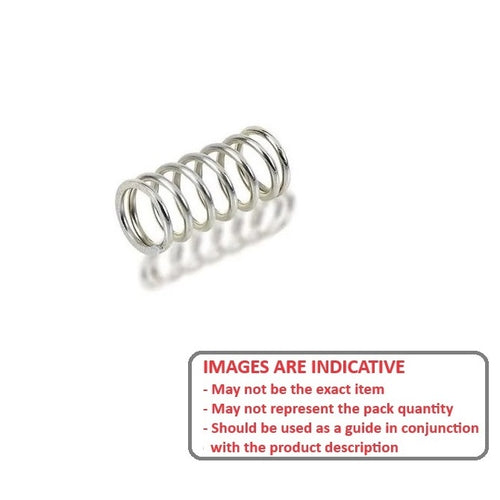

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
13.00
mm
(Equiv. 0.512 in.) - Free Length (L0)
20.0
mm
(Equiv. 0.787 in.) - Wire Diameter (d)
1.00
mm
(Equiv. 0.039 in.) - Loaded Height (L1) 12.00 mm
- Load at L1 7.80 N
- Rate (P/f) 1.0 N/mm
- Solid Height (Sh) 8.25 mm
- Approx. ID 11.0 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 11.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-UL13-20
- CUL1320
