Miniature Bearings Australia
CF5-FBUU - Datasheet
MBA
Category Information

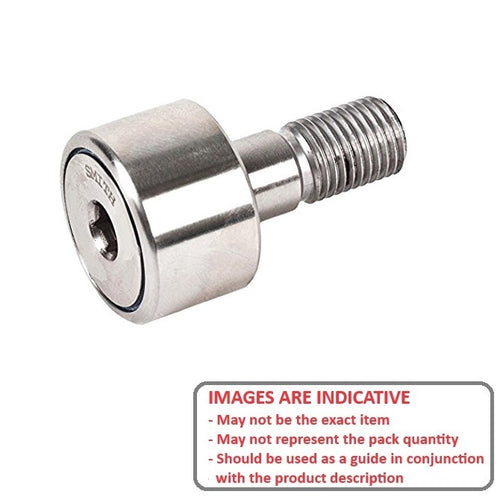

Cam Followers - Roller - Stainless SteelStainless Steel Roller Cam Followers. Stainless steel roller type cam followers.
- An expanded range may be available on special order. Please enquire.
- Stainless Steel similar to 440C.
- Seals: Synthetic rubber seals.
- Shields: Stainless Steel shields.
- Screwdriver slot for mounting.
- Stud designed to fit H7 housing.

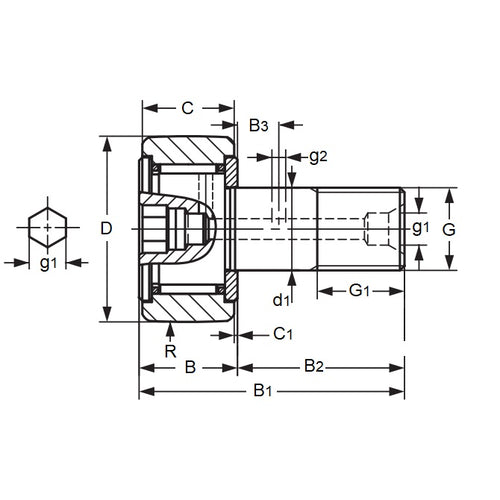

Product Data
- Diameter (D)
:
13.00
mm
(Equiv. 0.512 in.) - Overall Length (B1)
23.00
mm
(Equiv. 0.906 in.) - Thread Type M5x0.8
- Stud Length (B2) 13.00 mm
- Roller Width (C) 9.00 mm
- Seals Sealed
- Basic Rated Dynamic Load (Co) 1890 N
- Max Static Allowable Load 890 N
- Material Stainless Steel
