PLIT-120-200-150-69-CA-N - Datasheet
MBA
Category Information

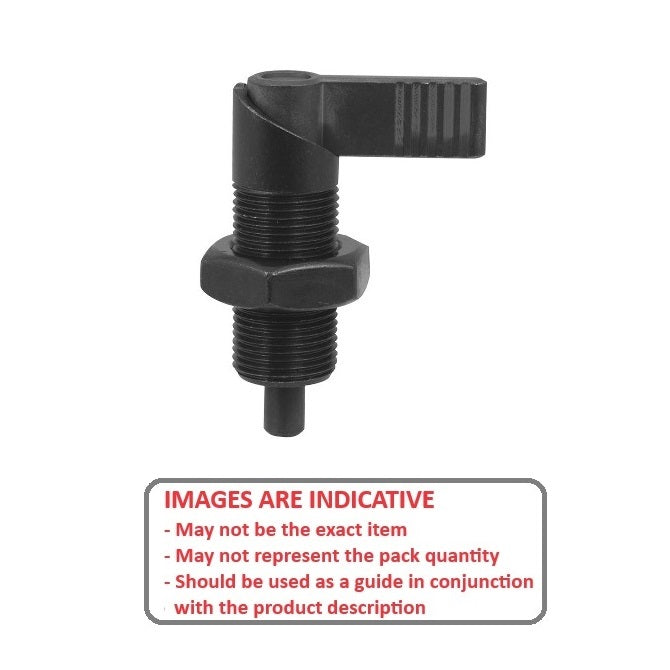

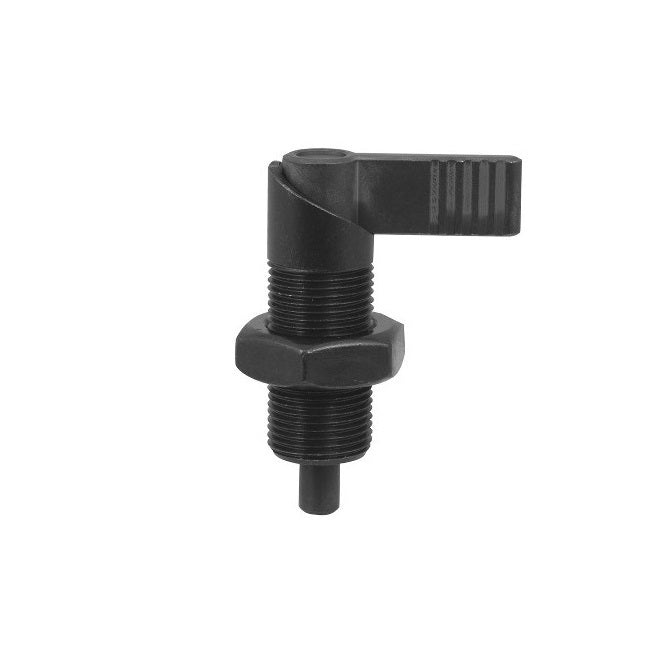

Plungers - Indexing Cam Action - With Hex NutWith Hex Nut Indexing Cam Action Plungers. Used in many tooling applications as well as on many types of machinery and equipment.

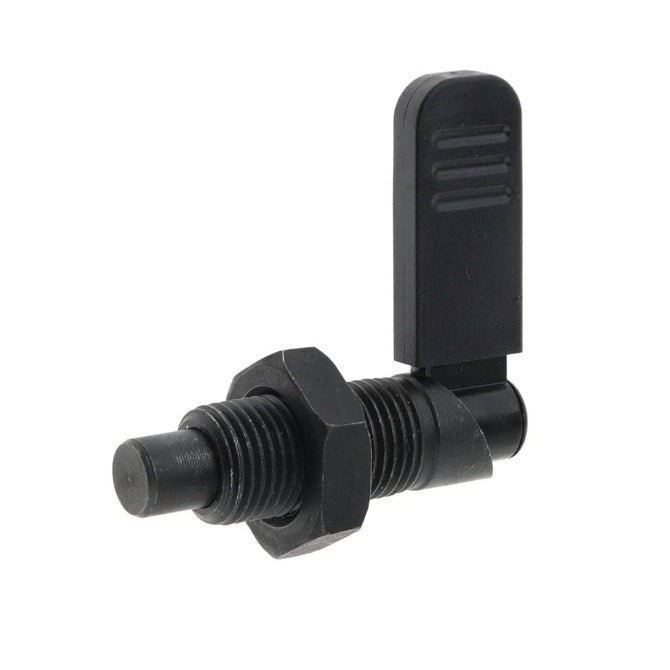

- Plunger is retracted as the nadle is turned on the cam of the body.
- Groove on top of cam locks the plunger into retracted position
- Body made from black oxide coated steel
- Plunger is made from steel, ground and nitrided.

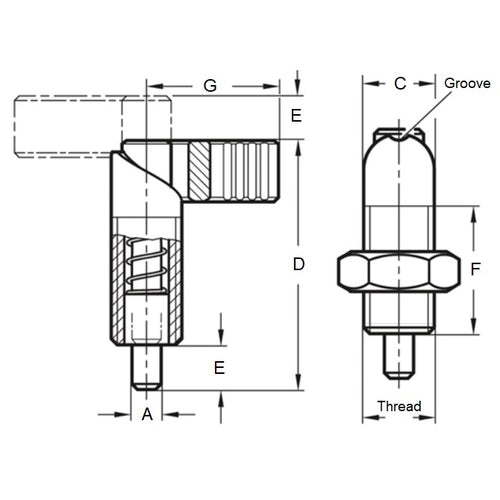

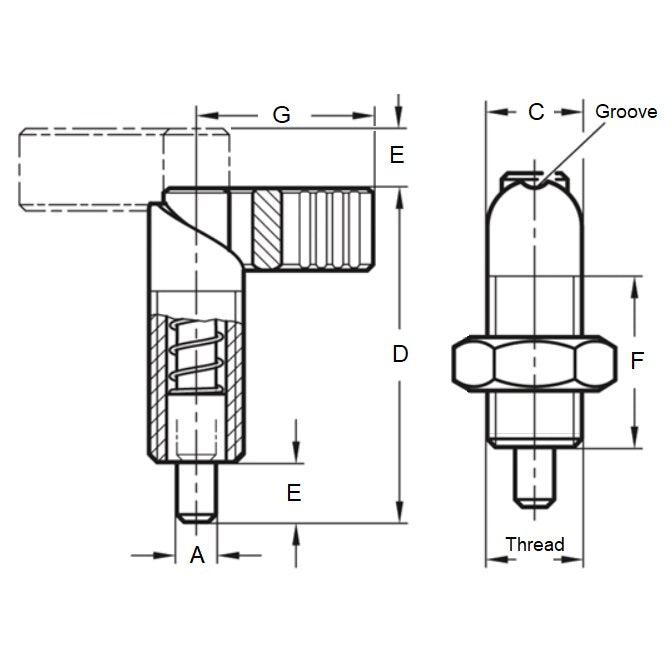

Product Data
- Thread : M20 Extra Fine (20x1.5mm)
- Body Diameter (C )
20.07
mm
(Equiv. 0.79 in.) - Thread Length (F)
36.1
mm
(Equiv. 1.421 in.) - Initial End Force 9.5 N
- Final End Force 11.4 N
- Nose Diameter (A) 12.0 mm
- Tip Length (E ) 11.9 mm
- Handle Length (G) 37.1 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- WCP35
- WCP-35
