PLIT-120-200-150-78-KPN-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - With Nut

With Nut Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M20 Extra Fine (20x1.5mm)
    • Overall Length (A) 78.0 mm
      (Equiv. 3.071 in.)
    • Initial End Force 6.8 N
    • Final End Force 17.7 N
    • Tip Diameter (C) 12.0 mm
    • Tip Length (D) 12.0 mm
    • Knob Diameter (J) 33.0 mm
    • Hex Size (K) 22.0 mm
    • Nut Size (L) 30.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-530
      • KBP530
      View full details

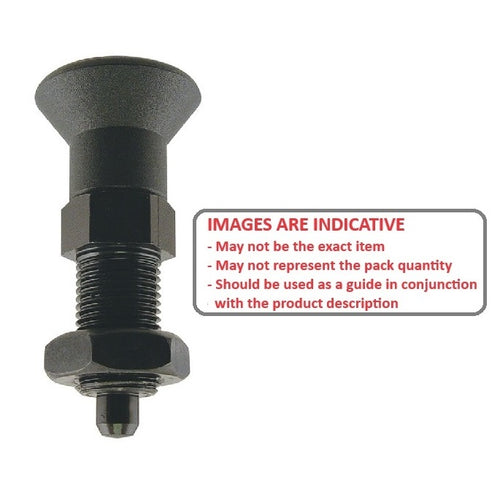

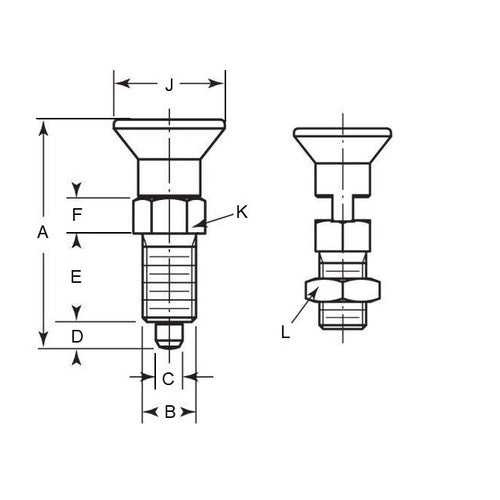

      PLIT-120-200-150-78-KPN-CDiagramPLIT-120-200-150-78-KPN-CImage
