P-020G-012-030FH-AL-G-032 - Datasheet

MBA

Category Information

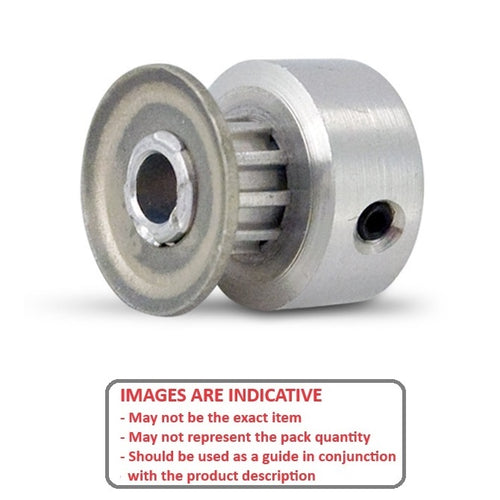

Pulleys - Metric Timing - 2.000mm Pitch - GT - 3mm Wide

3mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 2mm Pitch Timing Belts.Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • Finished Bores with Set Screws

Product Data

  • Number of Teeth : 12
  • Max Belt Width 3.00 mm
    (Equiv. 0.118 in.)
  • Bore (d) 3.175 mm
    (Equiv. 0.125 in.)
  • Bore Type Finished
  • Locking Type Set Screw
  • Type 1
  • Pitch Dia. (PD) 7.64 mm
  • Flange Diameter (FD) 12.2 mm
  • Overall Length 11.1 mm
  • Hub Diameter (HD) 12.2
  • Material Aluminium
Country of Origin: IN

Product Compliance and Data

Additional Resources

Cross References

  • Gates 12-2P03-6CA1
  • A6A51-012DF0304
  • A6A51012DF0304
  • 122P036CA1
