Miniature Bearings Australia
GE-01200-02200-ST - Datasheet
MBA
Category Information

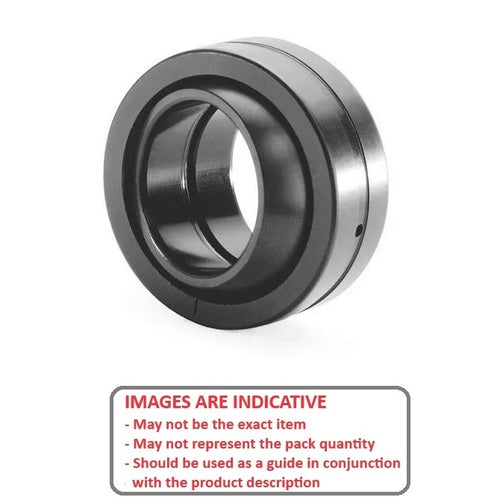

Bushings - Spherical - Steel - No Oil HoleNo Oil Hole Steel Spherical Bushings. Steel spherical plain bearings. Also known as ball bushings.
- Compensates for axial loads and misalignment.
Product Data
- Bore (d1)
:
12.000
mm
(Equiv. 0.472 in.) - OD (d2)
22.000
mm
(Equiv. 0.866 in.) - Width (B)
10.000
mm
(Equiv. 0.394 in.) - Outer Width (C) 7.00 mm
- Dynamic Load Capacity 1260 kgf
- Static Load Capacity 7560 kgf
- Features No Wiper Seals / No Oil Hole
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- IKO GE12E
- Nachi GE-12E
- Nachi SB-12A
- SB12A
