W0120-T-021-025-L-S6 - Datasheet
TW
Category Information

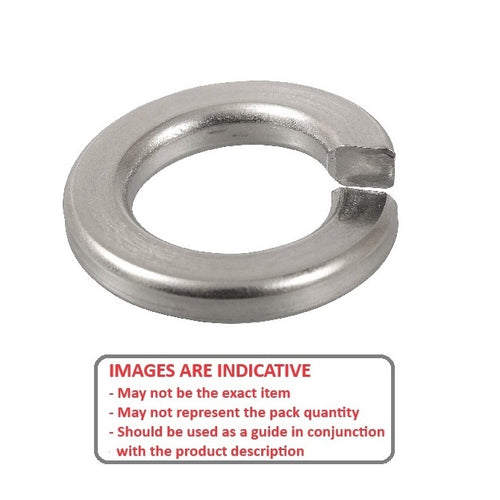

Washers - Lock - Split - Stainless SteelStainless Steel Split Lock Washers. Split type. 304 stainless steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.

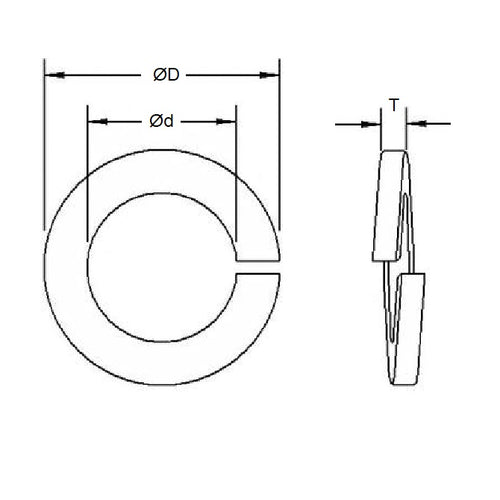

Product Data
- Nominal Inside Diameter
:
12.00
mm
+ 0.5 / - 0.0
(Equiv. 0.472 in.) - Outside Diameter
21.1
mm
(Equiv. 0.831 in.) - Thickness
2.50
mm
(Equiv. 0.098 in.) - Info 316 Stainless
- Info M12
- Info DIN 127 B
- Actual ID (Ref) 12.2 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 365120
- 92153A436
