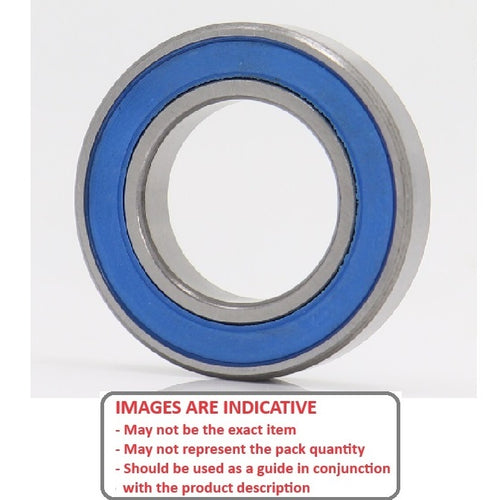

6701-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
12.000
mm
(Equiv. 0.472 in.) - OD (D)
18.000
mm
(Equiv. 0.709 in.) - Width (B)
4.000
mm
(Equiv. 0.157 in.) - Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6701
- Limiting Speed 11115
- Cage Type Standard
- Static Load Rating KGf 51.3
- Dynamic Load Rating KGf 89.3
- Radii 0.20 mm
- Inner Shoulder (UI) 13.86mm
- Outer Shoulder (UO) 16.70 mm
- Number of Balls 13
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Corally - Mini Assassin - Bearing 12-18-4mm
- Corally - RDX - Bearing 12-18-4mm
- Duratrax - Evader Buggy - Bearing 12-18-4mm
- Duratrax - Evader BX - Bearing 12-18-4mm
- Duratrax - Evader BX Nitro - Bearing 12-18-4mm
- Duratrax - Evader BX Pro RTR Electric - Bearing 12-18-4mm
- Duratrax - Evader ST - Bearing 12-18-4mm
- Duratrax - Evader ST Nitro - Bearing 12-18-4mm
- Duratrax - Evader ST Pro RTR - Bearing 12-18-4mm
- Hobao - Hyper GPX4 - Bearing 12-18-4mm
- HPI - R40 - Bearing 12-18-4mm
- HPI - R40 With Clutch Bell And Steering - Bearing 12-18-4mm
- Kyosho - Evolva 2005 - Bearing 12-18-4mm
- Kyosho - F1 FW-04 With GS-15R - Bearing 12-18-4mm
- Kyosho - FW-05 Foam Tyre Special Chassis - Bearing 12-18-4mm
- Kyosho - FW-05R - Bearing 12-18-4mm
- Kyosho - Mclaren BMW - Bearing 12-18-4mm
- Kyosho - Super Ten FW-04 - Bearing 12-18-4mm
- Kyosho - V-One RR - Bearing 12-18-4mm
- Kyosho - V-One RR Evolution - Bearing 12-18-4mm
- Kyosho - V-One RRR - Bearing 12-18-4mm
- Losi - Aftershock Monster Truck RTR LOSB0012 - Bearing 15-21-4mm
- Losi - Monster Truck LST2 LOSB0015 - Bearing 12-18-4mm
- Losi - Monster Truck LST2 LOSB0015 - Bearing 15-21-4mm
- Losi - Muggy - Bearing 15-21-4mm
- Mugen - MRX-4 - Bearing 12-18-4mm
- Mugen - MRX-4R - Bearing 12-18-4mm
- Mugen - MST-1 1/10 Gas Truck With Clutch - Bearing 12-18-4mm
- Mugen - MTX-2 - Bearing 12-18-4mm
- Mugen - MTX-2 4-WD - Bearing 12-18-4mm
- Mugen - MTX-3 - Bearing 12-18-4mm
- Mugen - MTX-3 Prospect - Bearing 12-18-4mm
- Mugen - SE7 K1 - Bearing 12-18-4mm
- Mugen - Sting 1/8 Gas - Bearing 12-18-4mm
- Ofna - Titan Deluxe - Bearing 15-21-4mm
- Ofna - Titan Twin - Bearing 15-21-4mm
- RD Logistics - Mongoose - Bearing 12-18-4mm
- Serpent - 705 - Bearing 12-18-4mm
- Serpent - 710 1-10TH Gas Sedan - Bearing 12-18-4mm
- Serpent - 835 1-10 2WD - Bearing 12-18-4mm
- Serpent - 835 1-10 4WD - Bearing 12-18-4mm
- Serpent - 9000 - Bearing 12-18-4mm
- Serpent - 950R - Bearing 12-18-4mm
- Serpent - 950R With Front Wheel Upgrade - Bearing 12-18-4mm
- Serpent - 950R With STE Ten and Front Wheel UP - Bearing 12-18-4mm
- Serpent - 950R With Steering and Tensioner - Bearing 12-18-4mm
- Serpent - Excel 1/8 Gas - Bearing 12-18-4mm
- Serpent - Impact 10 M2 Challenger - Bearing 12-18-4mm
- Serpent - Impact 10 Pro 2 - Bearing 12-18-4mm
- Serpent - Impact M2 Spec 2000 4WD - Bearing 12-18-4mm
- Serpent - Impulse 1/10 Scale Single SPE - Bearing 12-18-4mm
- Serpent - Impulse Pro 1/10 4WD - Bearing 12-18-4mm
- Serpent - Impulse Street 2 Speed 4WD - Bearing 12-18-4mm
- Serpent - Impulse Street Spec 4WD - Bearing 12-18-4mm
- Team Magic - G4S - Bearing 12-18-4mm
- Tenth Technology - Predator - Bearing 12-18-4mm
- Traxxas - Revo - Bearing 12-18-4mm
- Trinity - G4 Nitro Touring Car-E Class - Bearing 12-18-4mm
- Trinity - Mongoose - Bearing 12-18-4mm
- Trinity - Reflex NT 1/10 Scale - Bearing 12-18-4mm
- Trinity - Reflex NT Nitro With Clutch Bell - Bearing 12-18-4mm
- Trinity - Reflex NT Without Clutch Bell - Bearing 12-18-4mm
Cross References
- Sealed 6701 / 4
- 6701 Basic Size Ref
