OW-0120-0180-0260-R - Datasheet

MBA

Category Information

Bearings - One Way - Roller

Roller One Way Bearings. Roller Clutch Bearings rotate in one direction only.

  • One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
  • Commonly used in over-runnung, or backstopping applications.
  • The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
  • Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.

Product Data

  • ID (d) : 12.000 mm
    (Equiv. 0.472 in.)
  • OD (D) 18.000 mm
    (Equiv. 0.709 in.)
  • Width (B) 26.000 mm
    (Equiv. 1.024 in.)
  • Overrun Limiting Speed 19000 RPM
  • Type Drawn Cup Wide (With Bearing Support)
  • Bearings Material Steel
  • Max Torque 12.2 N.m
  • Cage Material Steel
  • Material Chrome Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Applications & Uses

    • RC Helicopter Parts
    • GMP - Cobra - 419 Roller Clutch Bearing
    • GMP - Competition - 419 Roller Clutch Bearing
    • GMP - Cricket - 419 Roller Clutch Bearing
    • GMP - Elite Rotor Head - 419 Roller Clutch Bearing
    • GMP - Legend - 419 Roller Clutch Bearing
    • GMP - Rebel - 419 Roller Clutch Bearing
    • GMP - Stork - 419 Roller Clutch Bearing

    Cross References

    • GMP 419
    • S99NH4MURC1226
    View full details

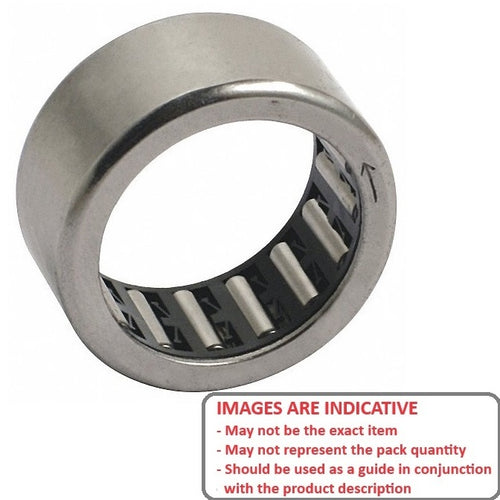

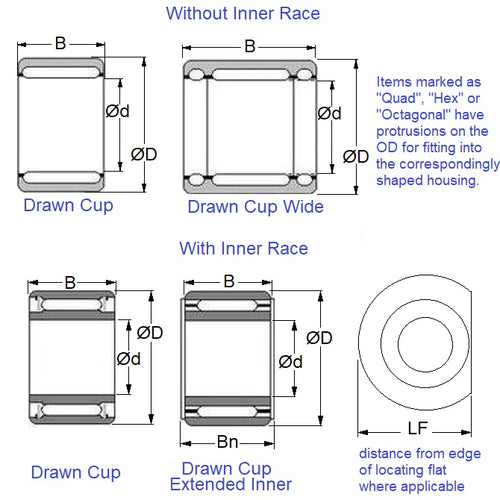

    OW-0120-0180-0260-RDiagramOW-0120-0180-0260-RImage
