OW-0120-0180-0160-RONY - Datasheet

MBA

Category Information

Bearings - One Way - Roller

Roller One Way Bearings. Roller Clutch Bearings rotate in one direction only.

  • One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
  • Commonly used in over-runnung, or backstopping applications.
  • The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
  • Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.

Product Data

  • ID (d) : 12.000 mm
    (Equiv. 0.472 in.)
  • OD (D) 18.000 mm
    (Equiv. 0.709 in.)
  • Width (B) 16.000 mm
    (Equiv. 0.63 in.)
  • Overrun Limiting Speed Not Listed RPM
  • Type Drawn Cup Octagonal OD
  • Bearings Material Steel
  • Max Torque Not Listed N.m
  • Cage Material Nylon
  • Material Chrome Steel with Nylon Retainer
Country of Origin: TW

Product Compliance and Data

Additional Resources

    Applications & Uses

    • RC Helicopter Parts
    • Century - Hawk II - Roller Clutch Bearing 12-18-16mm
    • Century - Hawk Sport All - Roller Clutch Bearing 12-18-16mm
    • Hirobo - Shuttle - Auto Rotation Roller Clutch Bearing
    • Hirobo - Tsurgi - 2500-048 Roller Clutch Bearing

    Cross References

    • HIROBO 0402-016
    • HIROBO 2500-048
    • 1WC1216
    • 2500048
    • 0402016
    View full details

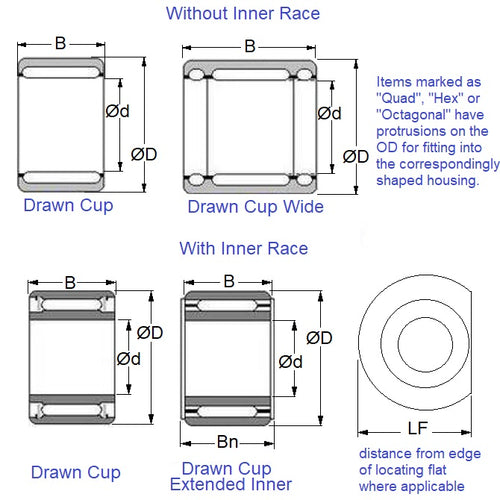

    OW-0120-0180-0160-RONYDiagramOW-0120-0180-0160-RONYImage
