P-100T-012-140A - Datasheet
MBA
Category Information

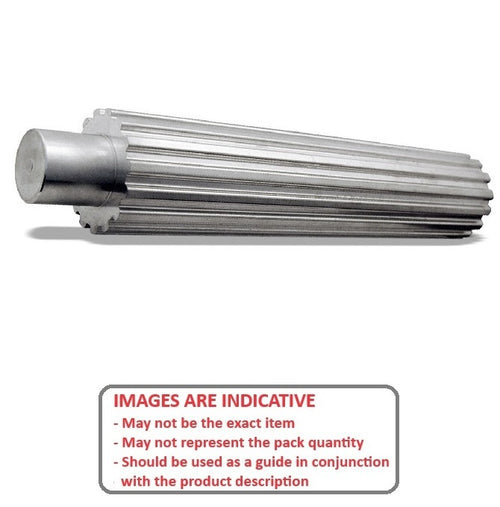

Pulleys - Metric Timing Stock - 10.000mm Pitch - T10 AluminiumT10 Aluminium 10.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 12
- Min. Usable Length (L)
140.0
mm
(Equiv. 5.512 in.) - Pitch Diameter (PD)
36.35
mm
(Equiv. 1.431 in.) - Outside Diameter (OD) 36.35 mm
- Shank Diameter (D1) 12.70 mm
- Shank Length (Sl) 20.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 12T10-PS140A
- 12T10PS140A
- A6A38M012T14
