PLI-P-120-320-23-LSP-BG - Datasheet

MBA

Category Information

Plungers - Indexing Precision - Ball Grip - With Support and Locking

With Support and Locking Ball Grip Indexing Precision Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

    Product Data

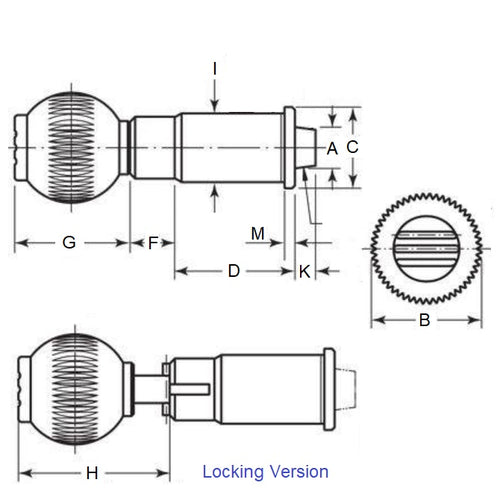

    • Body Diameter (I) : 20.00 mm
      (Equiv. 0.787 in.)
    • Body Length (D) 35.0 mm
      (Equiv. 1.378 in.)
    • Initial End Force 1.5 N
    • Final End Force 3.6 N
    • Tip Diameter (A) 12.0 mm
    • Tip Length (K) 10.0 mm
    • Knob Diameter (B) 32.0 mm
    • Knob Length (G) 33.0 mm
    • Internal Thread of Grip Ball M8.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP883
      • KBP-883
      View full details

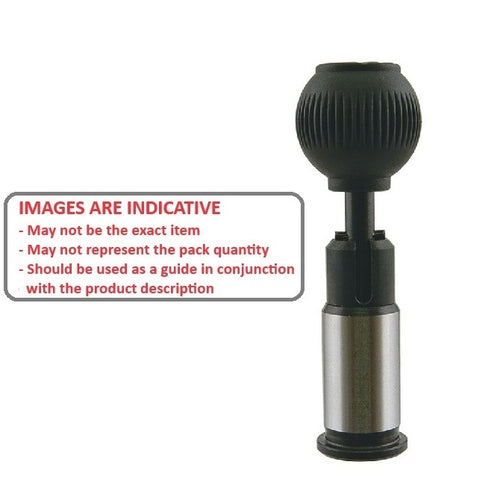

      PLI-P-120-320-23-LSP-BGDiagramPLI-P-120-320-23-LSP-BGImage
