MSF-100M-CGCRP - Datasheet
MBA
Category Information

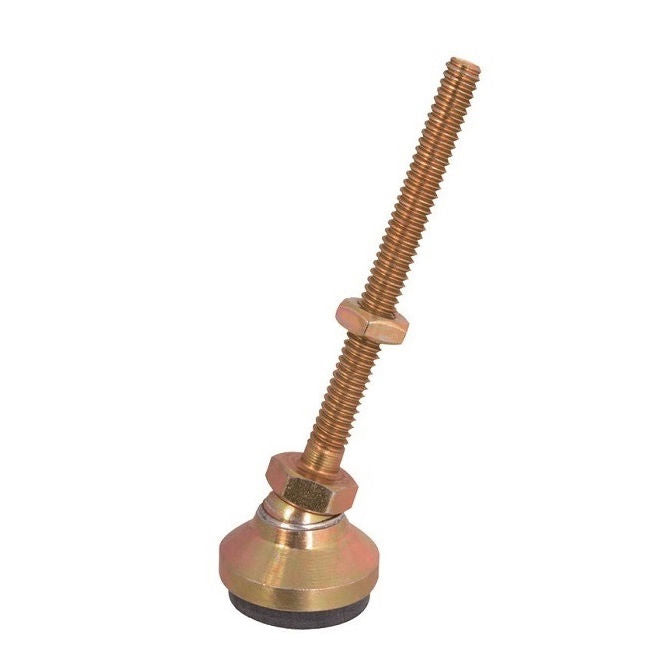

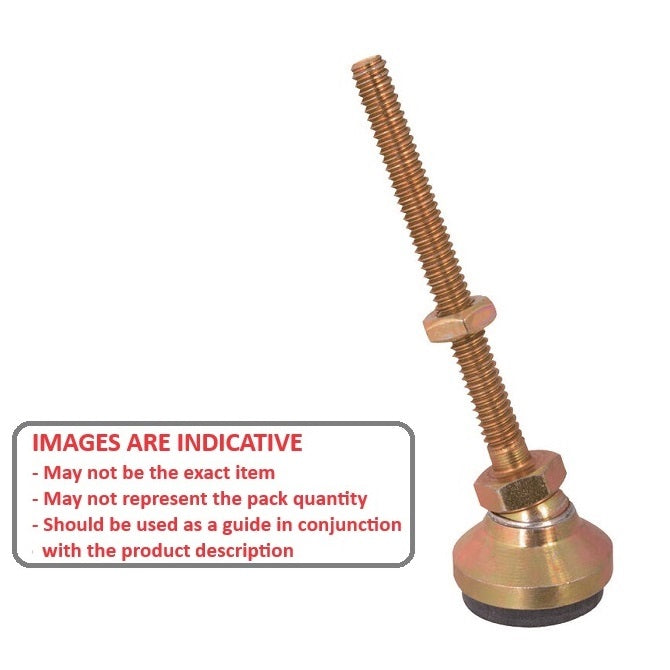

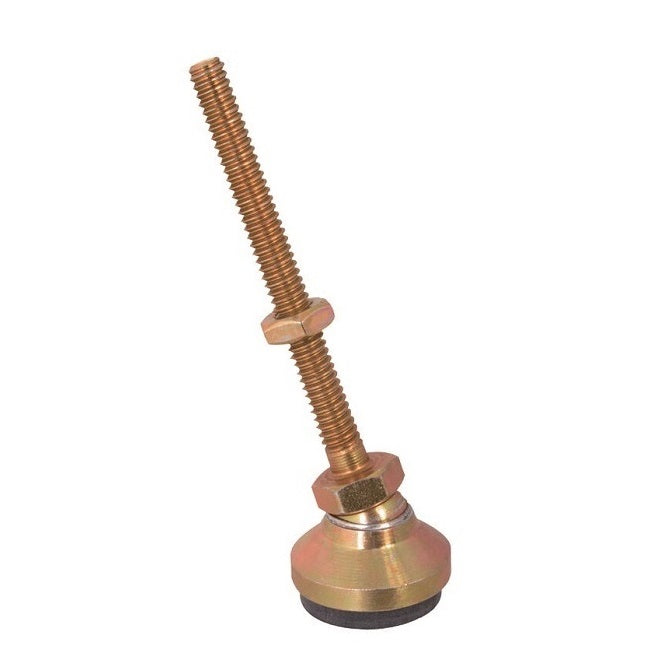

Mounts - Levelling Socket - Swivel - Gold Chromate - Rubber PaddedRubber Padded Gold Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
32.0
mm
(Equiv. 1.26 in.) - Foot Height (C)
25.0
mm
(Equiv. 0.984 in.) - Min. Thread Depth 9.6 mm
- Base Height (E) 8.00 mm
- Load Rating 1270 Kg
- Finish Gold Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 17.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF1270M10GR
- MLP25
- MLP-25
