MSF-100M-S3RP - Datasheet

MBA

Category Information

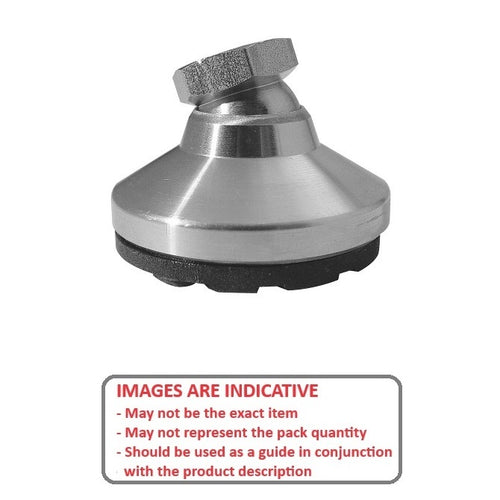

Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber Padded

Rubber Padded 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

An expanded range may be available on special order. Please enquire.
303 Stainless Steel.

Product Data

Thread Size (A) : M10 (10x1.5mm)
Base Diameter (D) 32.0 mm
Foot Height (C) 25.0 mm
Min. Thread Depth 10.0 mm
Base Height (E) 8.00 mm
Load Rating 1270 Kg
Pad Thickness 3.2 mm
Pad Material Elastomer
Hex Flats (B) 16.00 mm
Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® MLPSS-245
MLPSS245
MSF0580M1036
