MSM-095C-102-CBCRP - Datasheet
MBA
Category Information

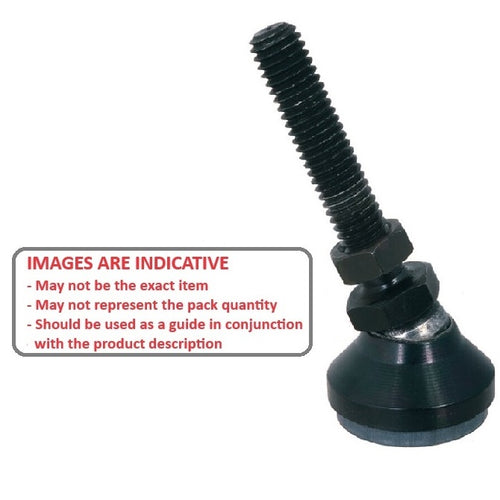

Mounts - Levelling Studded - Swivel - Black Chromate - Rubber PaddedRubber Padded Black Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Base Diameter (D)
31.8
mm
(Equiv. 1.252 in.) - Foot Height (C)
25.4
mm
(Equiv. 1 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 7.94 mm
- Overall Height 127.0 mm
- Load Rating 1270 Kg
- Finish Black Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 15.875 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K518
- MSM1270095CLBR
- TEBK20
- TEBK-20
