G044B-126-D72-048-064-S3-G - Datasheet
MBA
Category Information

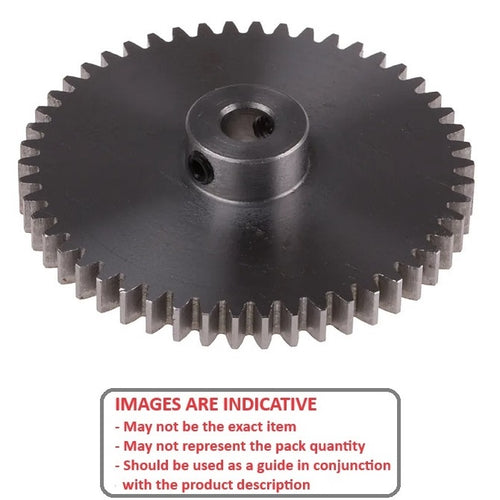

Gears - Spur - Hubbed - 72DP - StainlessStainless 72DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.3528 (1/72 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 72 teeth
- 72 Diametrical Pitch. Approx 1.11mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 126
- Pitch Circle Diameter (PD)
44.45
mm
(Equiv. 1.75 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Outside Diameter (OD) 45.151 mm
- Face Width (FW) 4.75 mm
- Type Hubbed
- Hub Diameter (D1) 12.70 mm
- Hub Projection (HL) 6.35 mm
- Locking Method Set Screw
- Quality AGMA Q10
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S1086Z-072S126
- S1086Z072S126
