B-080G-0125-0120-PCB - Datasheet

MBA

Category Information

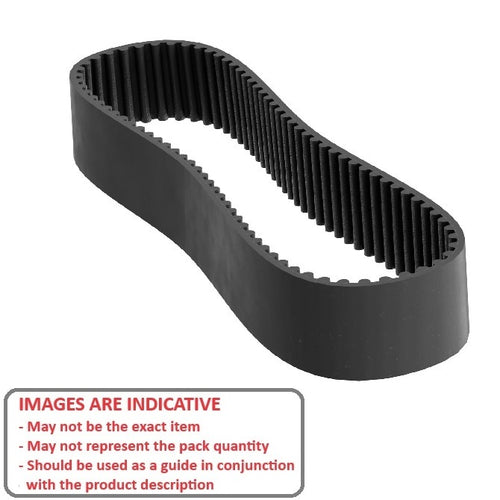

Belts - Timing 8.000mm Pitch - GT - 12mm Wide - Single Sided

Single Sided 12mm Wide GT Timing 8.000mm Pitch Belts. GT2 and GT3 Series Metric Timing Belts

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • GT3 replaces GT2 as GT2 stock is depleted

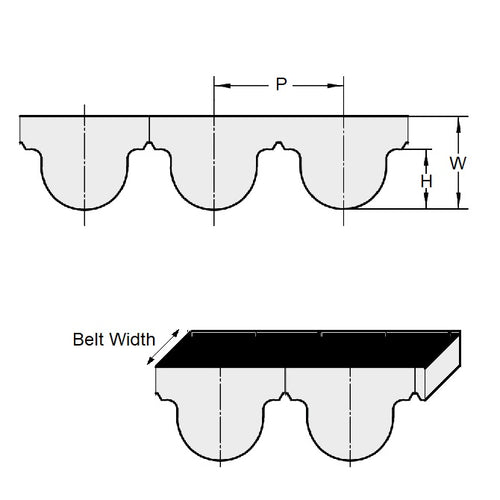

  • Pitch (P) - 8mm

Product Data

  • Number of Teeth : 125
  • Length 1000 mm
    (Equiv. 39.37 in.)
  • Width 12.0 mm
    (Equiv. 0.472 in.)
  • Reinforcement Carbon
  • Appearance Black
  • Breaking Strength 3780 N
  • Min Temperature (C) -18 Deg C
  • Max Temperature (C) 66 Deg C
  • Material Polyurethane with Carbon Cords
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • Gates 1000-8MX-12
  • 10008MX12
