Miniature Bearings Australia
BV10-01245-M49 - Datasheet
MBA
Category Information

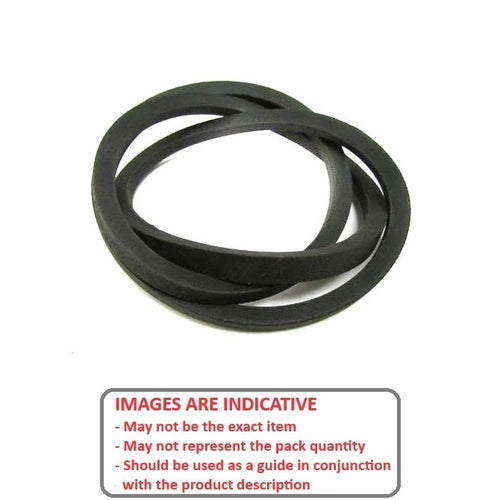

Belts - Vee - 10.0 x 5.5mm M 3L10.0 x 5.5mm M 3L Vee Belts. Miniature and small belts. 10.0mm Top Width x 5.5mm Height.
- An expanded range may be available on special order. Please enquire.
- Sizes are nominal and may vary slightly.
- Items marked as Fractional Horsepower are designed for general purrpose low horseposer applications such as laundry machines, home workshop tools, small fans and blowers, garage equipment, small metal and woodworking tools etc.
- Belts shown as Fractional Horsepower type should not be used with reverse side idlers.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Inside Circumference
:
1245.0 (49.0 in.)
mm
(Equiv. 49.016 in.) - Type Standard - V Belt
- Re-Inforcement Polyester
- Material Natural Rubber - Fabric Jacket
Product Compliance and Data
Additional Resources
Cross References
- BM049
