MAG-CP-125-13-13-H - Datasheet
MBA
Category Information

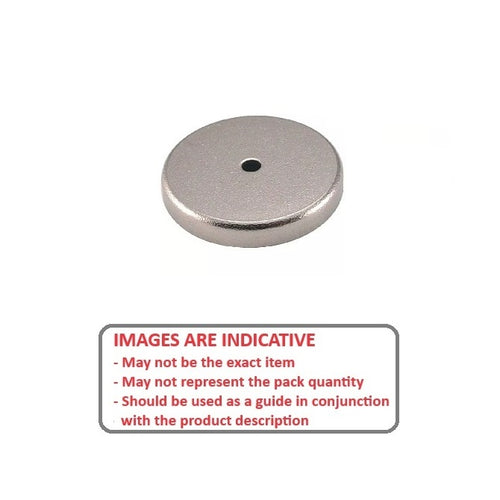

Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

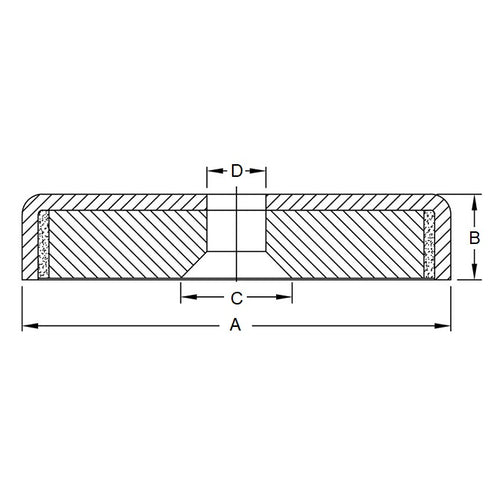

- Diameter (A)
:
124.71
mm
(Equiv. 4.91 in.) - Thickness (B)
13.46
mm
(Equiv. 0.53 in.) - Hole Recess (C)
12.70
mm
(Equiv. 0.5 in.) - Hole Top Diameter (D) 12.7 mm
- Holding Value 86 Kg
Product Compliance and Data
Additional Resources
Cross References
- CMA94
- CMA-94
